Workloads and VENs

The modified workloads navigation menu includes Workloads, Container Workloads, and VENs. You can see all your workloads, container workloads, and VENs on separate tabs. You can view their configuration, do workload or VEN-specific actions, and find the related VENs and workloads.

An idle workload does not program a firewall, therefore the Rules page of an idle workload does not show its rules.

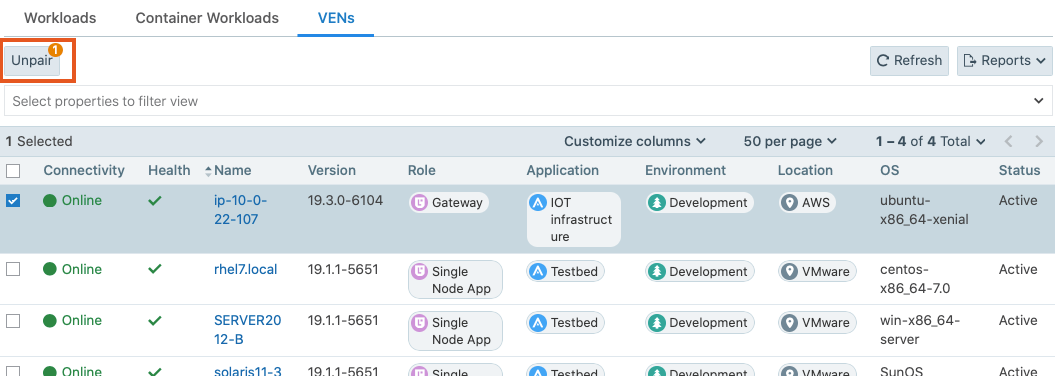

The VENs are listed on a new page separate from workloads. The VEN-related actions are not available under the Workloads tab.

Note

Users with the Workload Manager role can manage workloads and VENs.

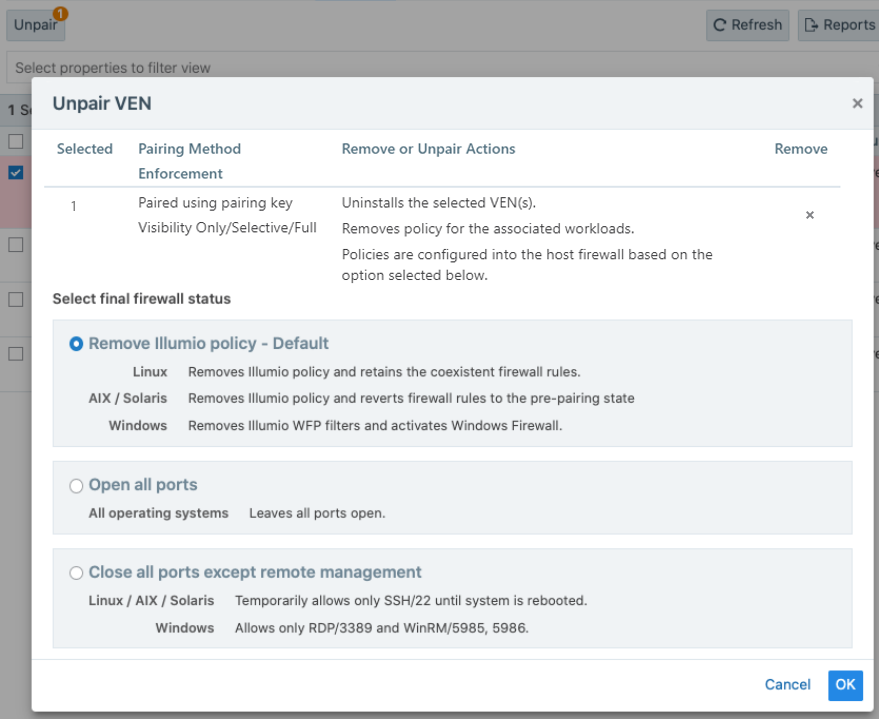

You can select a VEN(s) to unpair, refresh, and generate support reports. Container workloads (if any) are displayed under the Container Workloads tab.

Pairing Method	Policy Mode	Unpair Action
Pairing Key	Visibility Only/Enforced	Uninstalls the selected VEN(s). Removes policy for the associated workloads. Policies are configured in to the host firewall based on options selected in "Select final firewall status".
Pairing Key	Idle	Uninstalls the selected VEN(s). Removes policy for the associated workloads. No changes to the host firewall.
PKI Certificate or Kerberos	Visibility Only/Enforced	Uninstalls the selected VEN(s). Associated workloads become unmanaged but retain labels and IP addresses. Policies are configured in to the host firewall based on options selected in "Select final firewall status".
PKI Certificate or Kerberos	Idle	Uninstalls the selected VEN(s). Associated workloads become unmanaged but retain labels and IP addresses. No changes to the host firewall.

Container Workloads

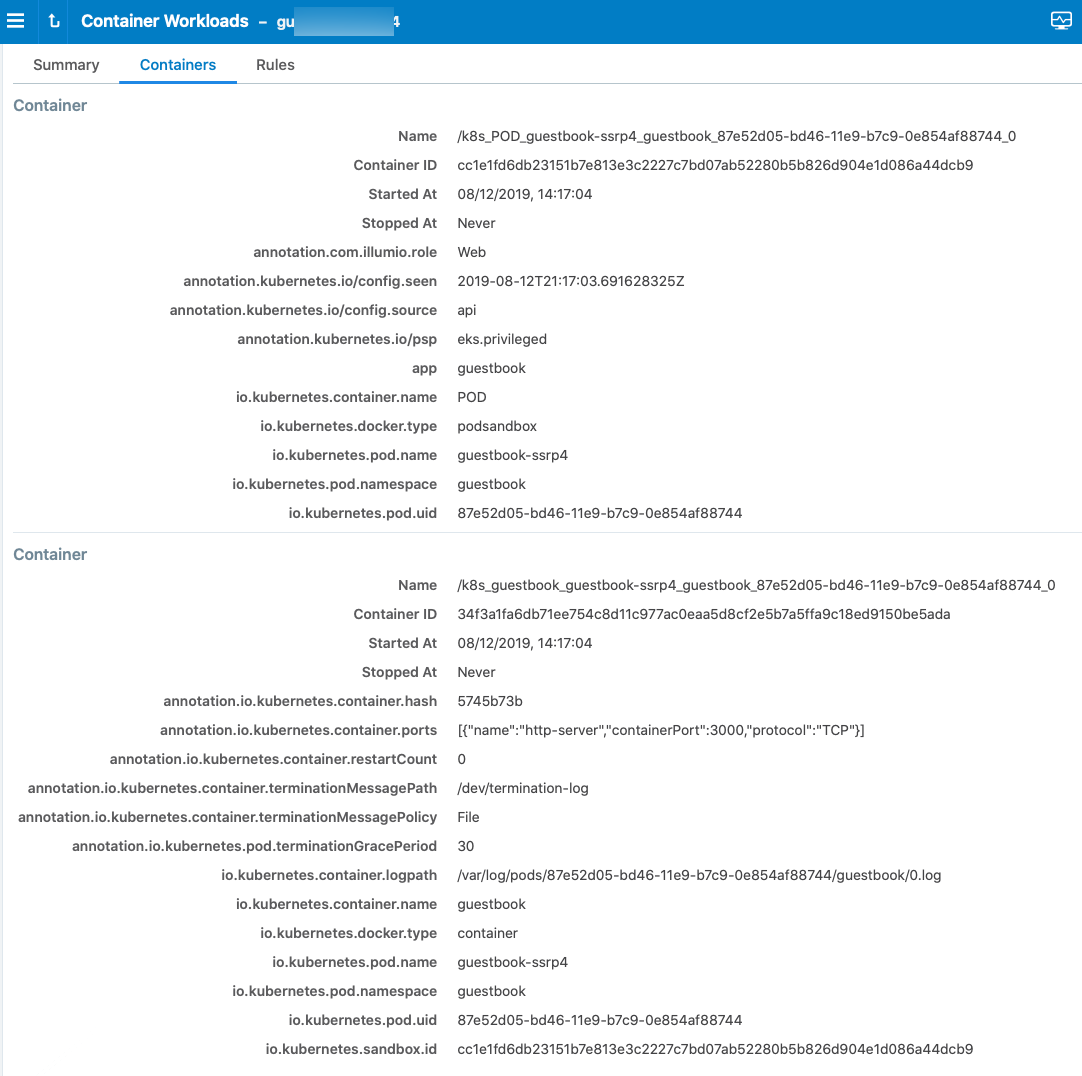

The Container Workloads page, lists the containers that exist on the PCE. The Status, Name, Container ID, and the Labels are displayed. You can click on a container to view it's details.
