VEN Dashboard
In Illumio Illumio Core 22.5.10, Illumio provides a dashboard to give you broad, visualized information about VEN statistics.
Working with the VEN Dashboard

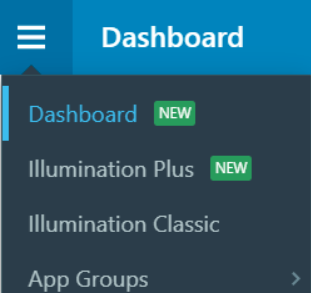

You can access this Dashboard through the menu:
The Dashboard uses an API to aggregate various data from the system and helps you focus on the data you are interested in.
For more information about the API support, see VEN Dashboard in the REST API Developer Guide.
In this release, only two user roles are allowed to use the Dashboard:
Global Org Owners and
Global Administrators.
In the upper right corner, there are two buttons that help you work with the Dashboard:
Reset button allows you to go back to the original Dashboard screen, and
Refresh button brings new fresh data from the system.

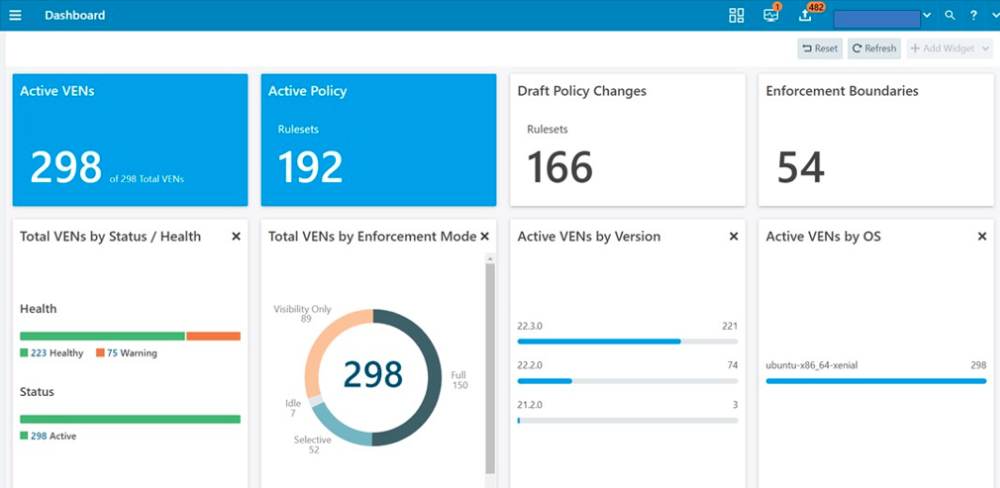

The Dashboard contains several widgets to display summary statistics or status
The upper four sections show stats about:
Active VENs (how many VENs are active out of the total number of VENs)
Active Policy (number of rulesets)
Draft Policy Changes
Enforcement Boundaries
In the lower sections, the Dashboard includes the following widgets:
Total VENs by Status/Health
VEN counts by status (stopped, suspended, uninstalling, and active statuses)
VEN counts by health (error, warning, and healthy)
Total VENs by Enforcement Mode
VEN stats by enforcement mode: full, visibility only, idle, and selective enforcement.
Active VENs by version
VEN stats by versions (number of VENs per version)
Active VENs by OS
VEN stats by currently employed versions (number of VENs per OS)
