Illumio Core 25.1 Install, Configure, Upgrade

Deploy C-VENs in Your Cluster

Important

Before deploying the C-VEN, ensure that either of the following two requirements has been met:

  • Kubelink is deployed on the Kubernetes cluster and is in sync with the PCE, or

  • Firewall coexistence is enabled.

Prerequisites

  • VEN deployment file provided by Illumio.

  • VEN secret file provided by Illumio.

  • Illumio's C-VEN docker image uploaded to a private container registry.

  • In OpenShift, create the 'illumio-ven' service account in the 'illumio-system' project and add this account to the privileged Security Context Constraint (SCC):

    • oc create sa illumio-ven

    • oc adm policy add-scc-to-user privileged -z illumio-ven -n illumio-system

Create a Pairing Profile for Your Cluster Nodes

Before deploying the C-VEN in your cluster, you should create a pairing profile to pair the cluster nodes with the PCE. You only need to create one pairing profile for all your nodes.

Note

You only need to create pairing profiles for Kubernetes or OpenShift nodes and not for container workloads.

For ease of configuration and management, consider applying the same Application, Environment, and Location labels across all nodes of the same Kubernetes or OpenShift cluster. The screenshot below shows an example of a pairing profile for a Kubernetes cluster.


Tip

Illumio recommends all pairing profiles for Kubernetes nodes not to use the Full enforcement policy state. Use Visibility Only mode for initial configuration.

You should only move them into Full enforcement state after you have completed all other configuration steps in this guide, such as setting up Kubelink, discovering services, and writing rules.

Configure C-VEN Secret

This section assumes that you have already created a Pairing Profile in the PCE. You will need the activation code for the C-VEN secret.

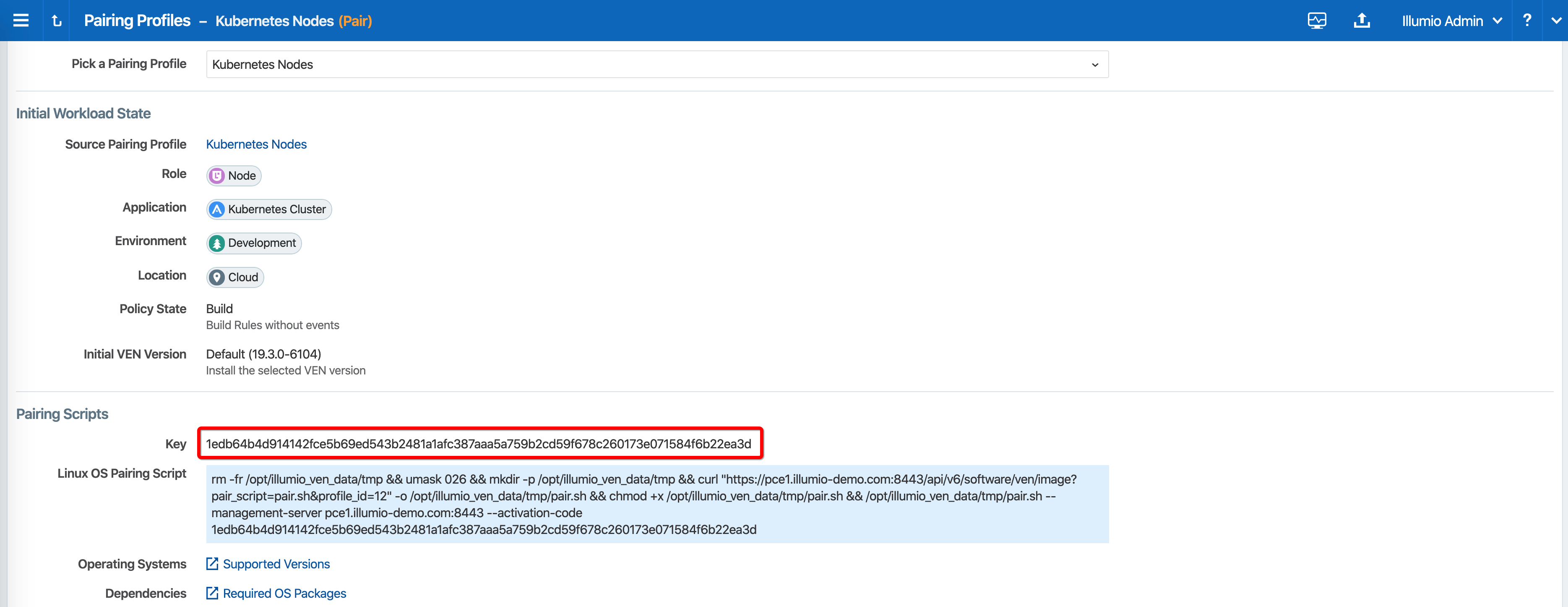

  1. To retrieve the activation code from the pairing profile, go to Policy Objects > Pairing Profiles, open the pairing profile created for your cluster nodes, and click Generate Key.


  2. After copying and saving the Key (in a text editor or similar tool), you can exit the page.

  3. Open the C-VEN secret YAML file and modify the following keys (under stringData):

    • ilo_server = PCE URL and port. Example: mypce.example.com:8443

    • ilo_code = Activation code value from Step 1. Example: 1edb64b4d914142fce5b69ed543b2481a1afc387aaa5a759b2cd59f678c260173e071584f6b22ea3d

    Contents of a modified illumio-ven-secret.yml file are shown below.

    #
# Copyright 2013-2021 Illumio, Inc. All Rights Reserved.
#
# VEN 21.5.x-xxxx

apiVersion: v1
kind: Secret
metadata:
  name: illumio-ven-config
  namespace: illumio-system
type: Opaque
stringData:
  ilo_server: mypce.example.com:8443 # Example: mypce.example.com:8443
  ilo_code: 1edb64b4d914142fce5b69ed543b2481a1afc387aaa5a759b2cd59f678c
  260173e071584f6b22ea3d # activation-code

    Caution

    Do not use 'https://' for the value associated with the ilo_server: key. This is a known issue and will be fixed in a future release.

  4. Save the changes.

  5. Create the C-VEN secret using the file.

    • To create the secret for Kubernetes:

    kubectl apply -f illumio-ven-secret.yml

    • To create the secret for OpenShift:

    oc apply -f illumio-ven-secret.yml

  6. Verify the C-VEN secret creation in your cluster.

    • To verify the creation of the secret for Kubernetes:

    kubectl get secret -n illumio-system
    oc get secret -n illumio-system
Deploy C-VENs

Modify the C-VEN configuration file to point to the correct Docker image. The example in this document has illumio-ven:21.5.x-xxxx uploaded to registry.example.com:443, so the image link in this example is: registry.example.com:443/illumio-ven:21.5.x-xxxx

  1. Edit the C-VEN configuration YAML file. The file name is illumio-ven-kubernetes.yml for a Kubernetes cluster and illumio-ven-openshift.yml for an OpenShift cluster.

    • Locate the spec: > template: > spec: > containers: section inside the YAML file. Modify the image link in the image: attribute.

  2. Save the changes.

    Below is a snippet from an example of the C-VEN configuration for Kubernetes or OpenShift to illustrate the image location.

    #
# Copyright 2013-2021 Illumio, Inc. All Rights Reserved.
#
# VEN 21.5.x-xxxx

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: illumio-ven
  namespace: illumio-system
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: illumio-ven
  namespace: illumio-system
  labels:
    k8s-app: illumio-ven
spec:
  selector:
    matchLabels:
      name: illumio-ven
  template:
    metadata:
      labels:
        name: illumio-ven
    spec:
      priorityClassName: system-node-critical
      serviceAccountName: illumio-ven
      hostNetwork: true
      hostPID: true
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
        - name: illumio-ven
          env:
            - name: ILO_SERVER
              valueFrom:
                secretKeyRef:
                  name: illumio-ven-config
                  key: ilo_server
            - name: ILO_CODE
              valueFrom:
                secretKeyRef:
                  name: illumio-ven-config
                  key: ilo_code
          command: [ "/ven-init", "activate" ]
          image: registry.example.com/illumio-ven:21.5.x-xxxx
          imagePullPolicy: IfNotPresent
          <...>

  3. (Optional) Reference your root CA certificate.

    If you are using a private PKI to sign your PCE certificate, make sure you add the references to the root CA certificate that signed the PCE certificate. If Kubelink is already deployed in the cluster, the ConfigMap used to store the root CA certificate should already be created in the cluster.

    Add the following sections to the C-VEN manifest file to reference the ConfigMap containing the root CA certificate:

    • volumeMounts (under spec.template.spec.containers)

    • volumes (under spec.template.spec)

    root-ca is the name used to designate the new volume mounted in the container. You can modify it according to your naming convention.

            volumeMounts:
        - name: root-ca
          mountPath: /etc/pki/tls/ilo_certs/
          readOnly: false
      volumes:
      - name: root-ca
        configMap:
          name: root-ca-config

  4. (Optional) Reference your container registry secret. See the "Authenticate Kubernetes Cluster with Container Registry" topic.

    In case you need to authenticate against your container registry when you pull an image from your cluster, you must make reference to the secret previously created for the container registry. Locate the spec: > template: > spec: section inside the YAML file and add the following lines:

          imagePullSecrets:
      - name: <container-registry-secret-name>

    Important

    Indentation matters in a YAML file. Make sure there are 6 spaces to the left before inserting the 'imagePullSecrets' keyword and align the '-' character below it with the 'i' of the 'imagePullSecrets' keyword.

    Note

    From the 20.2.0 and later releases, the container runtime detection is done automatically. You do not need to manually modify the container runtime socket path. You should do this 'Modify the container runtime socket path' step only if you are using a customized configuration for your container runtime.

  5. (Optional) Modify the container runtime socket path.

    In some cases, you have to modify the default socket path the C-VEN relies on to get information about the containers due to the following reasons:

    • A non-conventional or customized container runtime socket path

    • Two concurrent container runtimes

    In this case, you may have to modify the default mount path for the unixsocks volume in the C-VEN configuration file.

    For example, you want to listen on the 'containerd' container runtime, however, docker is also used on the nodes. You should modify the file as shown below, so that the C-VEN listens to events on 'containerd':

              volumeMounts:
          - name: unixsocks
            mountPath: /var/run/containerd/
            <...>
      volumes:
      - name: unixsocks
        hostPath:
          path: /var/run/containerd/
          type: Directory
          <...>

  6. Save the changes.

  7. Deploy C-VEN.

    • For Kubernetes:

    kubectl apply -f illumio-ven-kubernetes.yml

    • For OpenShift:

    oc apply -f illumio-ven-openshift.yml

  8. Verify the deployment.

    • For Kubernetes:

    kubectl get pods -n illumio-system
    oc get pods -n illumio-system

The illumio-ven-xxxxxxxxxx-xxxxx Pods should be in the "Running" state.

After C-VENs are successfully deployed, you can check the cluster information in the Illumio PCE UI. From the main menu, navigate to Infrastructure > Container Clusters.

You can also verify in the PCE UI that the C-VENs were successfully deployed by checking the following:

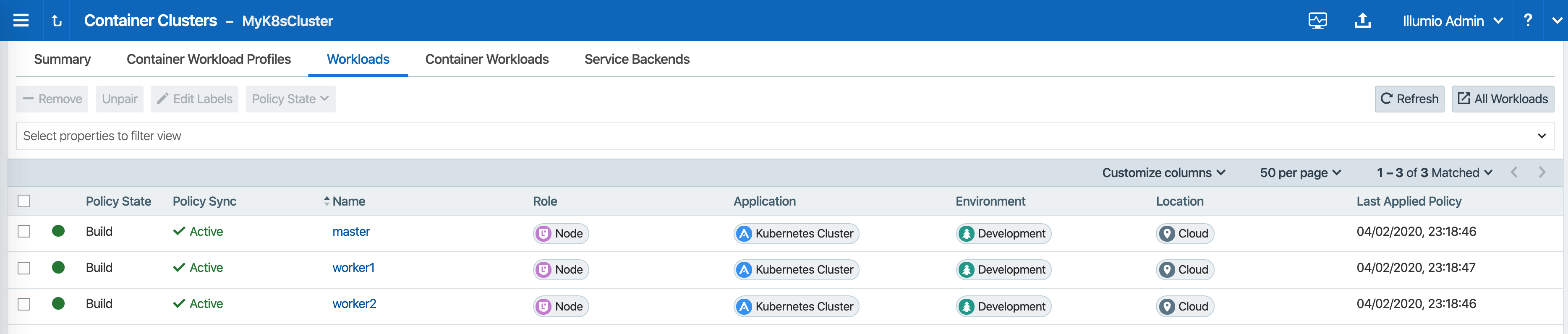

  • Under the Workload tab, nodes that are part of your Kubernetes or OpenShift cluster should be listed. An example is shown below.

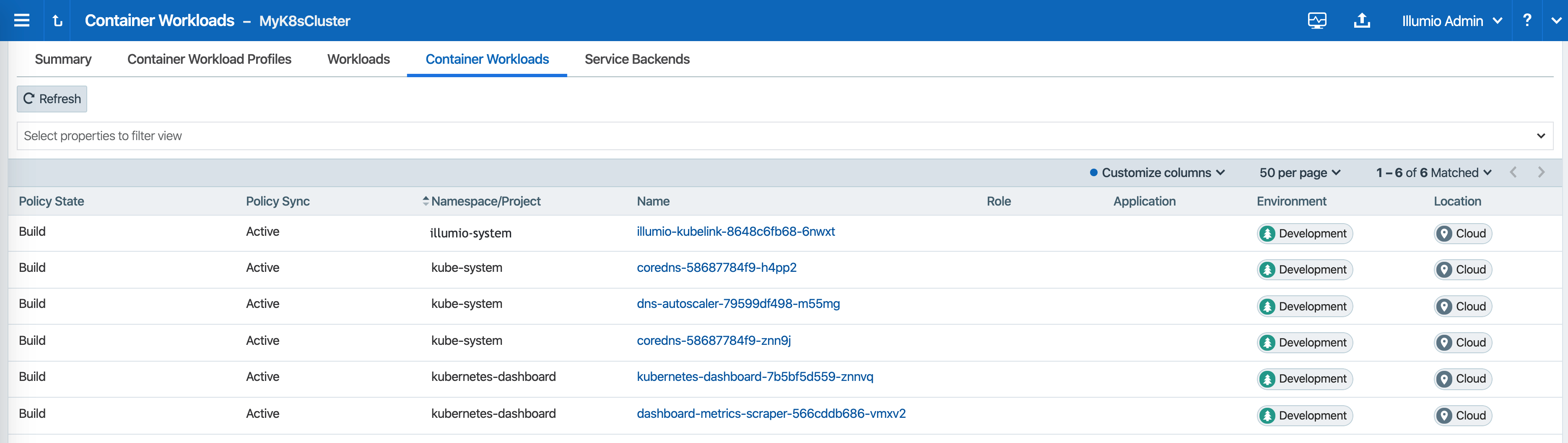

  • Under the Container Workloads tab, Pods deployed in your Kubernetes or OpenShift cluster should be listed. An example is shown below.


  • Illumination Map now displays system and application Pods running in your cluster.
