Illumio Core 25.2.10 Administration Guide

Events Framework

The Illumio events framework provides an information-rich, deep foundation for actionable insights into the operations of the Illumio Core.

Overview of the Framework

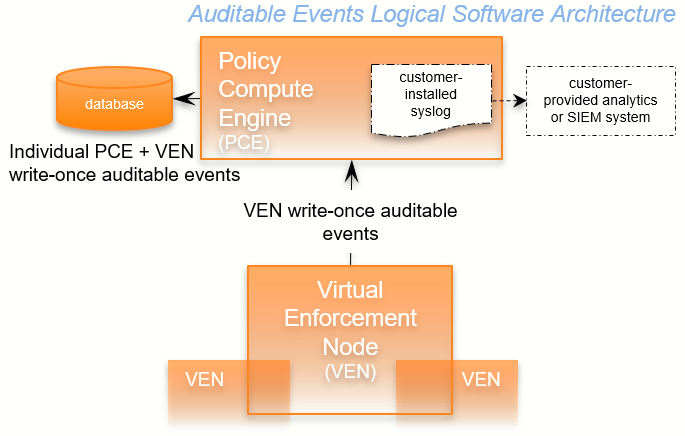

Auditable events are records of transactions collected from the following management interfaces:

  • PCE web console

  • REST API

  • PCE command-line tools

  • VEN command-line tools

All actions that change the configuration of the PCE, security policy, and VENs are recorded, including workload firewall tampering.


As required by auditing standards, every recorded change includes a reference to the program that made the change, the change's timestamp, and other fields. After recording, the auditable events are read-only.

Auditable events comply with the Common Criteria Class FAU Security Audit requirements standard for auditing.

Auditing Needs Satisfied by Framework

Need

Description

See topic...

Audit and Compliance

Evidence to show that resources are managed according to rules and regulatory standards.

Events Record Information

Resource Lifecycle Tracking

All information is necessary to track a resource through creation, modification, and deletion.

Events Lifecycle for Resources

Operations

Trace of recent changes to resources.

Events Lifecycle for Resources

Security

Evidence to show which changes failed, such as incorrect user permissions or failed authentication.

User Password Update Failed (JSON)

Benefits of Events Framework

The events framework in Core provides the following benefits:

  • Exceeds industry standards

  • Delivers complete content

    • Comprehensive set of event types

    • Includes more than 200 events

    • Additional notable system events are generated.

  • Easily accessible interfaces to capture events:

    • Event Viewer in the PCE web console

    • REST API with filtering

    • SIEM integration

    • Events are the same across all interfaces.

  • Designed for customer ease of use

    • Flattened, common structure for all events

    • Eliminates former duplicate or multiple events for single actions

    • Streamed via syslog in JSON, CEF, or LEEF format

    • Create/Update/Delete REST APIs recorded as events.

      Read APIs/GET requests are not recorded because they do not change the Illumio Core.
