Illumio Core 23.2 Install, Configure, Upgrade

VEN Compatibility with Workloads Hosting Containers

This topic describes how to enable VEN compatibility with workloads hosting containers. It covers how to configure the PCE as well as VENs that are supporting the underlying hosts.

Note

This topic describes only how to enable VEN compatibility with workloads hosting containers. It doesn't describe Illumio support for containers.

If you use an overlay network in your environment, Illumio strongly recommends that you use an orchestration platform to manage your containers. Illumio provides a complete solution for Kubernetes-based platforms. See Illumio Core for Kubernetes and OpenShift.

How it works

Illumio Core is compatible with using VENs to protect workloads that host containers. The VEN can apply out-of-band policy to traffic on the forwarding path of the firewall.

The VEN provides a capability called Container Inherits Host Policy (CIHP) whereby the VEN applies policies — written for a host workload — to the forwarded traffic. The host, in turn, forwards traffic that is inbound to the container to it's destination, and in this way the container traffic is subjected to the host firewall policy.

Requirements and Limitations

  • The VEN's interaction with workloads hosting containers does not represent the container as a workload (map or policy object), and each container is implicitly part of the Docker host (the workload).

  • Containers must share the same policies as the host.

  • CIHP is supported on RHEL 8 / Oracle Linux 8 / Ubuntu 22 and later with Illumio Core 22.5 and later.

  • In Illumio Core 21.5 and later, if you want to enforce traffic on the container's hosts only, allow all the traffic to containers and bypass CIHP by enabling IP forwarding. See Enable IP Forwarding.

  • No support for segmentation between the host and containers on the same host.

  • No support for segmentation between containers on the same host.

Verified container engines

Note

Make sure that the VEN is compatible on your version of Linux. (See the Illumio Support Portal.)

VEN interaction with workloads hosting containers has been verified to be compatible with the following container engines:

Container Engine

Supported Versions as of July, 2025

Docker

19.03 through 28.x

Podman

3.0 and 4.0

Enable PCE compatibility with workloads hosting containers

  1. If using Docker version 27.x or later, first see the bullet in the Requirements and Limitations section about the br_netfilter module.

  2. Configure Containers to inherit host policy.

    This is disabled by default. Enablment copies the host policy (all Illumio iptables related rules) into the filter:FORWARD chain so that packets forwarded to containers are controlled by the Illumio security policy.

    Set a scope of Illumio labels for hosts with containers:

    1. Go to Settings > Security.

    2. Click the Containers Policy tab and then click Edit.

    3. Add scope for host with containers.

      You can define a narrow scope with specific label values or a broad scope that encompasses all workloads. For more information, see "Ruleset Scope" in the Security Policy Guide.

  3. Pair workloads with containers. If they are already paired, go to the Security section of the workload's details page and verify that the workload's containers settings shows Container Inherit Host Policy: Yes

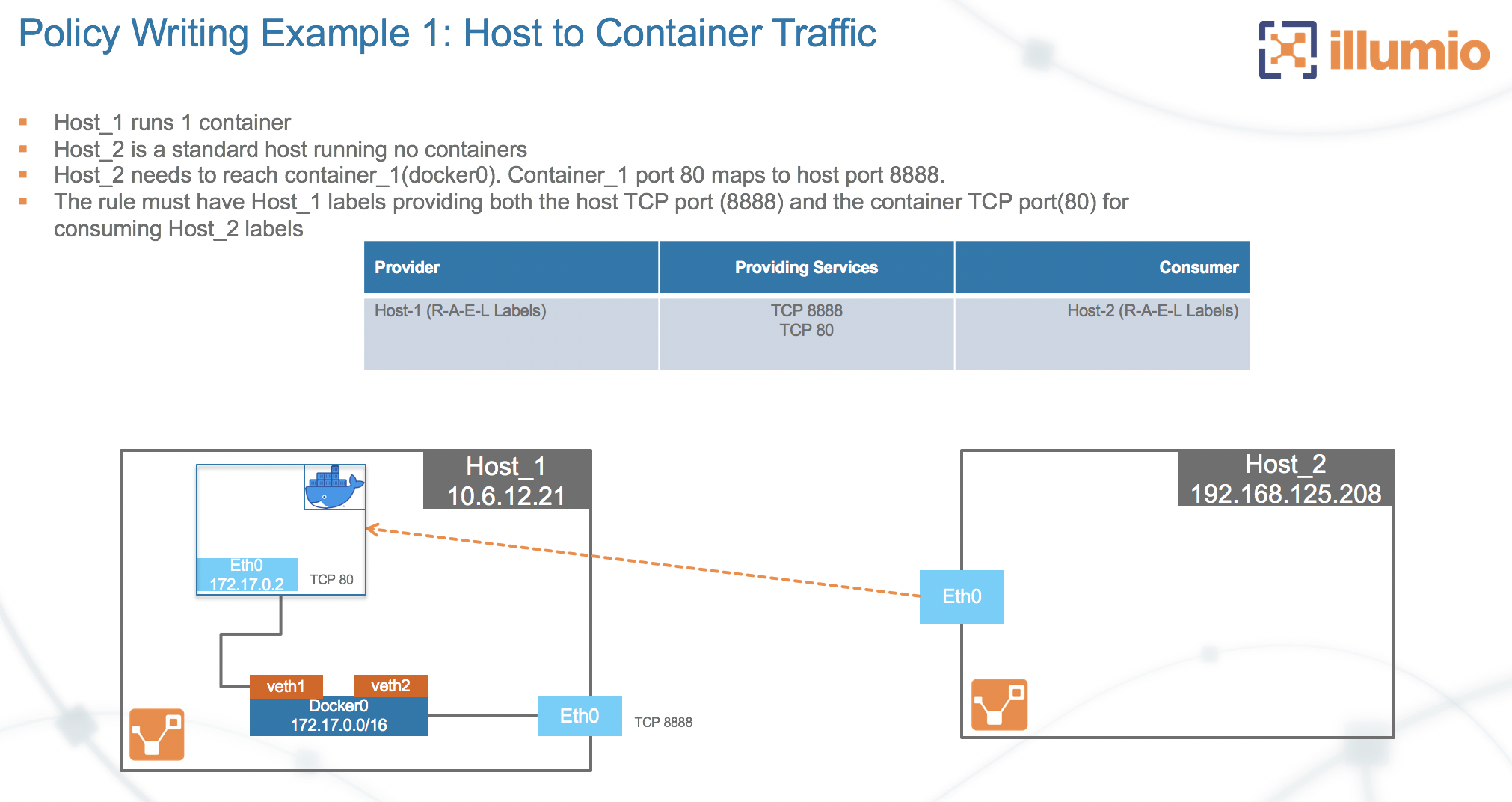

  4. Write rules to cover the port mapping between the host and the container. Below is an example scenario of container access:


    To allow access to the container on Host_1 port 80, create an intra-scope rule for access within the application group and extra-scope rule for access from outside of the application group.

    The example rule below depicts any workload being allowed to access container port 80 on Host_1. Notice the service includes port 80 of container port and port 8888 of host port.

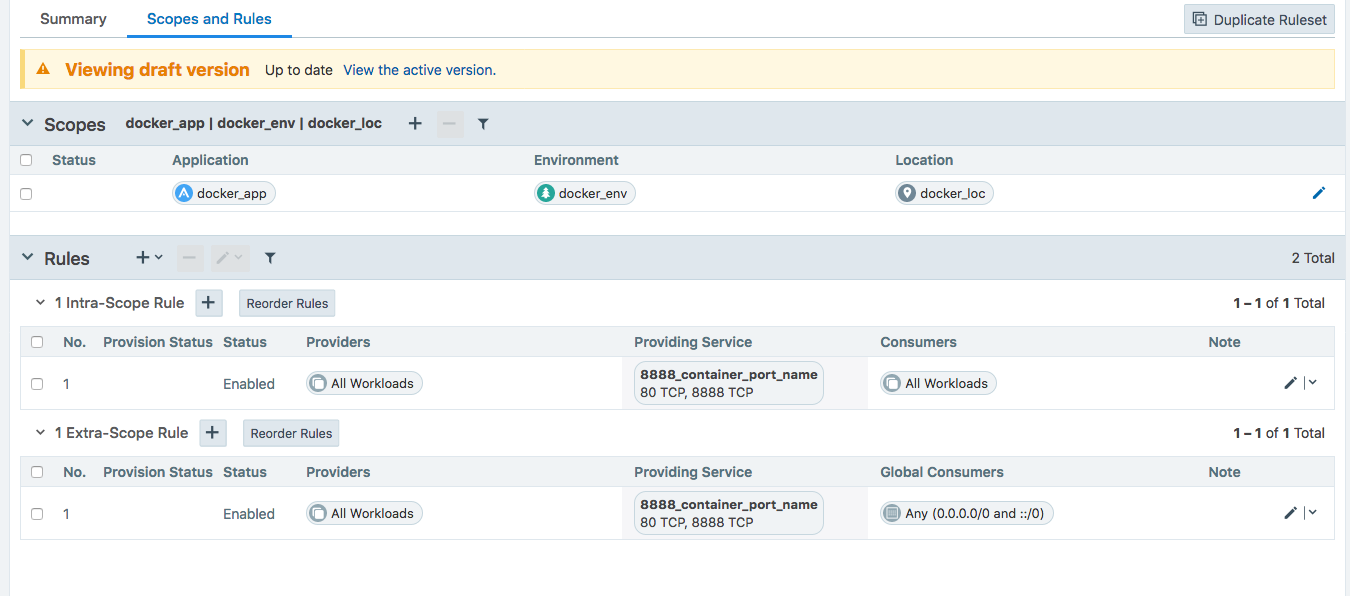

    Rule allowing access to container on Host_1:


    Docker will have rules to NAT port 8888 to port 80.

  5. Verify traffic flows to the containers on the VEN.

    Verify in the log at /opt/illumio_ven_data/log/vtapdrop.log that there is no dropped traffic to the containers. In the /opt/illumio_ven_data/log/vtapflow.log file, verify that there are flows to the containers on the VEN when workload is enforced.

    The highlighted log entry below below shows the flow between host_2 192.168.125.208:54253 to container on Host_1 172.17.0.2:80:

    ==> /opt/illumio_ven_data/log/vtapflow.log <==
2020-02-03T16:47:15.104-08:00 docker0 O 0 4 192.168.125.208 172.17.0.2 6 64886 80 12286 C 0 U SWID=3c1b9f96-969a-472e-bbbc-9d1c93751ef9 TBI=0 TBO=116
2020-02-03T16:48:15.157-08:00 docker0 O 0 4 192.168.125.208 172.17.0.2 6 64885 80 72339 C 0 U SWID=3c1b9f96-969a-472e-bbbc-9d1c93751ef9 TBI=0 TBO=116

    Inbound traffic from Host_2 to Host_1 will not be shown in vtapflow.log, only traffic to container IP address from Host_2.
