Access Services from within the Cluster
Access Services from within the Cluster

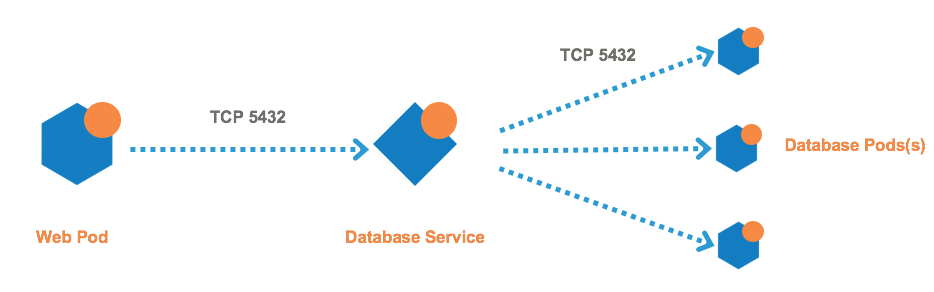

For connections to a service from within the cluster, the Pods connect to a Service IP and the connections get distributed to the Pods.
Kubernetes
The rules you need to write are:
Example Ruleset
Scope
Application | Environment | Location |
|---|---|---|
Risk Assessment | Development | Cloud |
Intra-Scope Rule
OpenShift
The rules you need to write are:
Example Ruleset
Scope
Application | Environment | Location |
|---|---|---|
Risk Assessment | Production | HQ |
Intra-Scope Rule
Access Services from Outside the Cluster
Access Services from Outside the Cluster
Kubernetes
With Kubernetes, connections to a containerized application from the outside world can be handled in many different ways. In this release, Illumio supports only configurations which expose applications via the Kubernetes NGINX ingress controller (HostNetwork type only). Exposing applications using HostPort are not supported.
In typical Kubernetes deployments, connections to a containerized application from the outside world go through the ingress controllers, then the connection goes directly from controllers to the pods - not the service. Example of scenario and rule coverage are shown below.
Scenario:
The Kubernetes cluster and containerized applications are in the Development environment
The containerized application is called RiskAssessment and each Pod within the application listens on TCP 8080
The RiskAssessment application is exposed to the outside world via the ingress controller. The controller listens on TCP port 80 for the RiskAssessment application
In Illumio, the RiskAssessment workloads (Pods) provide to the controller on TCP 8080. The controller provides TCP 80 to the outside world.
The rules you need to write are:
Example Ruleset 1
Scope
Application | Environment | Location |
|---|---|---|
Risk Assessment | Development | Cloud |
Intra-Scope Rule
Source | Service | Destination |
|---|---|---|
All Workloads | All Services | All Workloads |
Extra-Scope Rule
Source | Service | Destination | Notes |
|---|---|---|---|
Risk Assessment | TCP 8080 | Worker | The Destination should be the role label of the nodes which nest the Ingress controllers. |
Example Ruleset 2
The second ruleset opens the ingress controller to the external network. The rule and ruleset below should have been created from the Rules for Kubernetes or OpenShift Cluster section of this guide. You can modify the ruleset as needed.
Scope
Application | Environment | Location | Notes |
|---|---|---|---|
Kubernetes Infrastructure | Development | Cloud | The scope of the ruleset should match the Kubernetes infrastructure scope. |
Intra-Scope Rule
Source | Service | Destination | Notes |
|---|---|---|---|
Worker Node(s) | TCP 80 | External Network | This rule should exist from the Rules for Kubernetes or OpenShift Cluster section. The Source should be the Kubernetes node(s) which contain the ingress controller. The Destination can be an IP List such as 0.0.0.0/0 (any), HQ, Corporate, or employee subnet that requires connectivity into the exposed container workloads. |
OpenShift

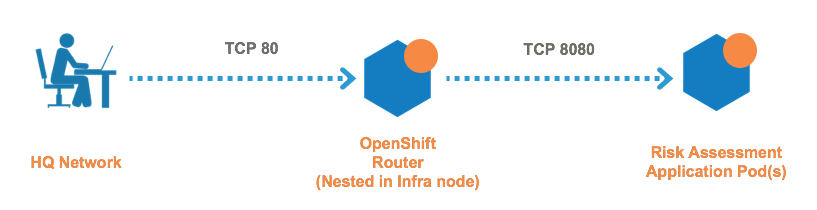

Connections to a containerized application from the outside world go through the OpenShift Router, then the connection goes directly from router to the Pods -- not the service. Example of scenario and rule coverage are shown below.
Scenario:
The OpenShift cluster and containerized applications are in the development environment
The containerized application is called RiskAssessment and each Pod within the application listens on TCP 8080
The RiskAssessment application is exposed to the outside world via the router. The router listens on TCP port 80 for the RiskAssessment application
In Illumio, the RiskAssessment workloads (Pods) provide to the router on TCP 8080. The router provides TCP 80 to the outside world.
The rules you need to write are:
Example Ruleset 1
Scope
Application | Environment | Location |
|---|---|---|
Risk Assessment | Production | HQ |
Intra-Scope Rule
Source | Service | Destination |
|---|---|---|
All Workloads | All Services | All Workloads |
Extra-Scope Rule
Source | Service | Destination | Notes |
|---|---|---|---|
Risk Assessment | TCP 8080 | IST Infra (Role) | Destination refers to the Illumio Segmentation Template. The Destination should be the role label of the node(s) that nest the OpenShift Router. |
Example Ruleset 2
The following Ruleset is from the Segmentation Template and you can modify it as needed.
Scope
Application | Environment | Location | Notes |
|---|---|---|---|
IST OpenShift Infrastructure | IST Production | IST HQ | Ruleset is derived from Illumio Segmentation Template. The scope should match the OpenShift cluster. |
Intra-Scope Rule
Source | Service | Destination | Notes |
|---|---|---|---|
IST Infra (Role) | TCP 80 | External Network | This rule is included in Illumio Segmentation Template. The Source should be the OpenShift cluster node(s) that nest the router. The Destination can be an IP list such as 0.0.0.0/0 (any), HQ, Corporate, or employee subnet. The IST default includes 0.0.0.0/0 (any) IP list. |
