Configure Switches for the NEN

sFlow on the switch must be configured to send its output to the NEN. In addition, the sFlow-monitored interfaces on the switch must be configured in the NEN service via the PCE web console. If the NEN service receives sFlow information from an unrecognized or undefined network endpoint (or interface), it will reject that information. The NEN service continually aggregates the sFlow traffic and sends the aggregated information to the PCE traffic collector every 10 minutes.

Note

sFlow is only a sampling protocol, so all the flows might not be recorded. If the default sampling rate is not sufficient for your use case, see your vendor documentation.

Configure sFlow on Cisco Switch

Use the following (config)# commands to configure sFlow on a Cisco 9000 series switch:

Enable sFlow:
```
(config)# feature sflow
```
In the following command, the NEN_ip_address variable is the IP address of the NEN primary node:
```
(config)# sflow collector-ip NEN_ip_address vrf default
```
In the following command, the switch_IP_address variable is the IP address of the switch, which you will also use in the PCE web console. switch_IP is a management IP address.
```
(config)# sflow agent-ip switch_IP_address
```
In the following command, the interface_name_to_monitor variable is a mnemonic name that you have already defined on the switch for the interface, which you will also use in the PCE web console.
```
(config)# sflow data-source interface interface_name_to_monitor
```
Repeat the above sflow data-source interface command for all interfaces on the switch that you want to secure.

See Add Unmanaged Workloads and Switch Definitions in the PCE Web Console for information.

Example of sFlow Configuration for Cisco

nexus9000(config)# show run sflow

!Command: show running-config sflow

feature sflow

sflow collector-ip 10.10.10.1 vrf default
sflow agent-ip 10.20.20.1

sflow data-source interface Ethernet1/7

In this example:

The IP address on the switch that can communicate with the PCE is 10.20.20.1.
The PCE/NEN IP address (sFlow collector) is 10.10.10.1.
A workload is directly attached to interface Ethernet 1/7.

Collect SNMP ifIndex Value for Cisco

When the switch reports sFlow to the NEN, it includes interface index details in the flow records. When the NEN receives sFlow, it parses the records and retains the records only for the interfaces you specify in the NEN configuration. You need to collect the ifindex IDs and add them to the NEN configuration later. You can determine your switches' SNMP ifIndex values using the following command:

# show interface snmp-ifindex

Manufacturer/Model	Command	Notes
Cisco 9000	In privileged mode: show interface snmp-ifindex	This command outputs the IFMIB (decimal) and the ifIndex (hex) values. You need the IFMIB (decimal) value later. This value is required to configure Monitor Traffic for the NEN.

Manufacturer/Model

Command

Notes

Cisco 9000

In privileged mode:

show interface snmp-ifindex

This command outputs the IFMIB (decimal) and the ifIndex (hex) values. You need the IFMIB (decimal) value later. This value is required to configure Monitor Traffic for the NEN.

Example of Command Output

nexus9000# show interface snmp-ifindex
--------------------------------------------------------------------------------
Port   IFMIB      Ifindex (hex)
--------------------------------------------------------------------------------
mgmt0  83886080  (0x5000000)
Eth1/1 436207616 (0x1a000000)
Eth1/2 436208128 (0x1a000200)
Eth1/3 436208640 (0x1a000400)
Eth1/4 436209152 (0x1a000600)
Eth1/5 436209664 (0x1a000800)
Eth1/6 436210176 (0x1a000a00)
Eth1/7 436210688 (0x1a000c00)
Eth1/8 436211200 (0x1a000e00)

This example uses Ethernet 1/7 interface as an sFlow source interface. To enter the interface information in the PCE, collect the decimal value of the ifIndex. In case of the Cisco Nexus 9000, this value is in the IFMIB column of the command output. The command output above shows 436210688 as the IFMIB value for Ethernet 1/7 interface. This value is required to configure the Monitor Traffic field in the PCE configuration page.

Configure sFlow on Arista Switch

Use the following commands to configure sFlow on an Arista 7000 series switch:

Run sFlow (this command is similar to enabling sFlow on a Cisco switch):
```
sflow run
```
In the following command, the IP address is the destination PCE IP to which the sFlow information should be sent:
```
sflow destination 10.6.1.158
```
In the following command, the IP address is the source IP from where the sFlow information is sent:
```
sflow source 10.21.6.1
```

On an Arista switch, the list of sFlow command options are:

Command	Description
`destination`	Set sFlow collector destination.
`extension`	Configure sFlow extension settings.
`polling-interval`	Set polling interval (secs) for sFlow.
`qos`	Configure QoS parameters.
`run`	Run sFlow globally.
`sample`	Set sample characteristics for sFlow.
`source`	Set the source IP address.
`source-interface`	Configure the source interface for sFlow datagrams.
`vrf`	Configure VRFs.

Collect SNMP ifIndex Value for Arista

You can determine your Arista switches' SNMP ifIndex values using the following command:

arista7000# show snmp mib ifmib ifindex
Ethernet1: Ifindex = 1
Ethernet2: Ifindex = 2
Ethernet3: Ifindex = 3
Ethernet4: Ifindex = 4
Ethernet5: Ifindex = 5
Ethernet6: Ifindex = 6
Ethernet7: Ifindex = 7
Ethernet8: Ifindex = 8

Add Unmanaged Workloads and Switch Definitions in the PCE Web Console

To create a security policy, the switches and the workloads attached to them should be defined in the PCE web console as follows:

Log into the PCE web console.
Define the unmanaged workloads that are attached to the switch by selecting Workloads and VENs > Workloads > Add > Add Unmanaged Workload. You will associate these unmanaged workloads with their switches later.
See the Security Policy Guide for information on adding unmanaged workloads.
Define the switches and associated workloads, by selecting Infrastructure > Switches.
Click Add.
Enter the details in the displayed fields as described in the table below.
After entering or selecting values for all the required fields, click Save.

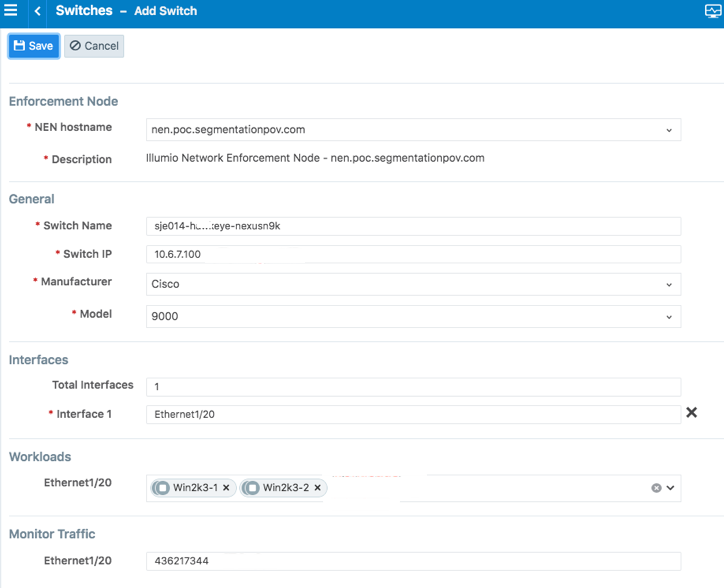

Fields in the PCE web console > Infrastructure > Switches > Add Switch page:

Field Name	Description	Required	Notes
NEN hostname	FQDN of the NEN that runs the NEN service	Yes	This field is populated with the FQDN of your NEN. You cannot edit this field.
Description	Description of the NEN service	Yes	This field is populated with "Illumio Network Enforcement Node" and the FQDN of your PCE. You cannot edit this field.
Switch Name	A free-form, mnemonic name of your choice for the switch	Yes	Make this name easy to remember and distinguishable from other switch names.
Switch IP	IP address of the switch	Yes	Corresponds to switch_IP_address that you defined in Configure sFlow on Cisco Switch. It is also known as sflow agent-ip in Cisco switches.
Manufacturer	Name of the switch manufacturer	Yes	Select Cisco.
Model	Model number of the switch	Yes	Select 9000.
Interfaces	Defined interfaces on the switch	No	Corresponds to interface_name_to_monitor you defined on the switch and configured in Configure sFlow on Cisco Switch. This can be a custom string. You can also add interfaces that are not monitored by sFlow.
Workloads	Names of workloads connected to the switch's defined interfaces	No	Only those workloads assigned to the switch interfaces are secured. You can attach one or more workloads to an interface.
Monitor Traffic	SNMP ifIndex of the switch interface See Collect SNMP ifIndex Value for Cisco and Collect SNMP ifIndex Value for Arista.	Yes/No	If the interface is monitored by sFlow, the Monitor Traffic field is required.
