Overview of Events Administration

This section describes how to do typical administration tasks related to PCE events.

Before You Begin

Illumio recommends that you be familiar with the following technology:

Solid understanding of Illumio Core
Familiarity with syslog
Familiarity with your organizations' Security Information and Event Management (SIEM) systems

About This Guide

This guide provides the following information to administer your PCE deployment:

An overview of events and SIEM integration
Events setup considerations
Event record formats, types, and common fields
Event types by resource
SIEM integration considerations and recommendations

See also the following related documentation:

U.S. National Institute for Standards and Technology's NIST 800-92 Guide to Computer Security Log Management
U.S. Department of Homeland Security National Cybersecurity Center

Before Reading This Guide

Illumio recommends that you be familiar with the following technology:

Solid understanding of the Illumio Core
Familiarity with syslog
Familiarity with your organization's Security Information and Event Management (SIEM) systems

Notational Conventions in This Guide

Newly introduced terminology is italicized. Example: activation code (also known as pairing key)
Command-line examples are monospace. Example: illumio-ven-ctl --activate
Arguments on command lines are monospace italics. Example: illumio-ven-ctl --activate activation_code
In some examples, the output might be shown across several lines but is actually on one single line.
Command input or output lines not essential to an example are sometimes omitted, as indicated by three periods in a row. Example:
```
...
some command or command output
...
```

Events Framework

The Illumio events framework provides an information-rich, deep foundation for actionable insights into the operations of the Illumio Core.

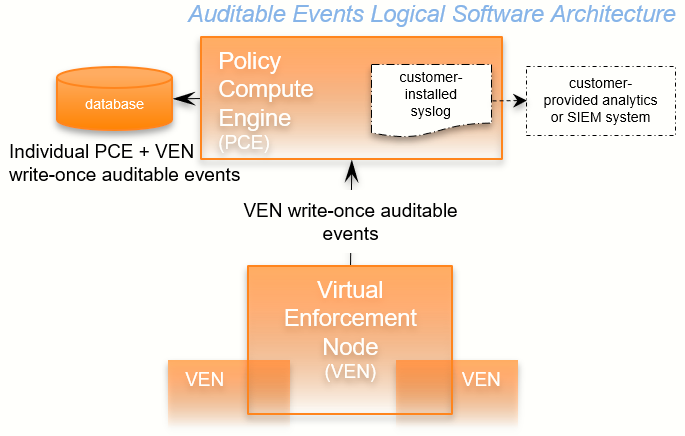

Overview of the Framework

Auditable events are records of transactions collected from the following management interfaces:

PCE web console
REST API
PCE command-line tools
VEN command-line tools

All actions that change the configuration of the PCE, security policy, and VENs are recorded, including workload firewall tampering.

As required by auditing standards, every recorded change includes a reference to the program that made the change, the change's timestamp, and other fields. After recording, the auditable events are read-only.

Auditable events comply with the Common Criteria Class FAU Security Audit requirements standard for auditing.

Auditing Needs Satisfied by Framework

Need	Description	See topic...
Audit and Compliance	Evidence to show that resources are managed according to rules and regulatory standards.	Events Record Information
Resource Lifecycle Tracking	All information is necessary to track a resource through creation, modification, and deletion.	Events Lifecycle for Resources
Operations	Trace of recent changes to resources.	Events Lifecycle for Resources
Security	Evidence to show which changes failed, such as incorrect user permissions or failed authentication.	User Password Update Failed (JSON)

Benefits of Events Framework

The events framework in Core provides the following benefits:

Exceeds industry standards
Delivers complete content
- Comprehensive set of event types
- Includes more than 200 events
- Additional notable system events are generated.
Easily accessible interfaces to capture events:
- Event Viewer in the PCE web console
- REST API with filtering
- SIEM integration
- Events are the same across all interfaces.
Designed for customer ease of use
- Flattened, common structure for all events
- Eliminates former duplicate or multiple events for single actions
- Streamed via syslog in JSON, CEF, or LEEF format
- Create/Update/Delete REST APIs recorded as events.
  Read APIs/GET requests are not recorded because they do not change the Illumio Core.

Events Lifecycle for Resources

Illumio resources progress through the lifecycle stages (creation, updating, deletion) and the Illumio Core records them with the appropriate event types.

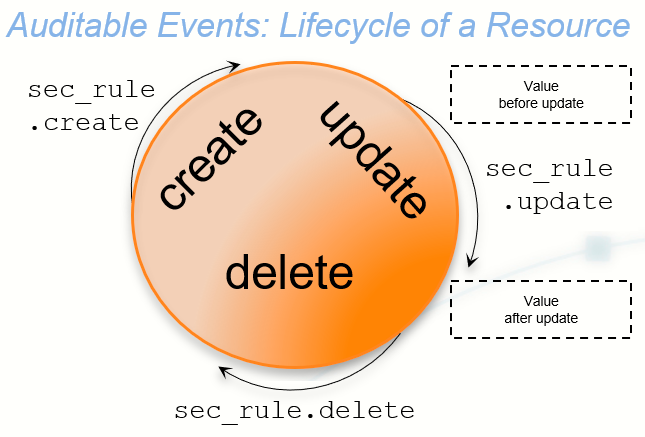

About the Lifecycle

Many resources have a lifecycle from creation, through update, to deletion. For example, the events related to a security policy rule (identified by the resource name sec_rule) are recorded with the following event types.

sec_rule.create
sec_rule.update: Update events record with the values of the resource object both before and after the event for a lifecycle audit trail.
sec_rule.delete

Other Resource Lifecycles

Some resources have unique characteristics and do not follow the create-update-delete pattern. For example, workloads have the following event types:

workload.update
workload.upgrade
workload.redetect_network
workload.recalc_rules
workload.soft_delete
workload.delete
workload.undelete
