VEN Startup and Shutdown
This topic provides information on starting and stopping VENs.
Start Up VENs
The VEN starts when the workload is booted from the system boot files. The VEN can also be started manually.
Automatic VEN Startup
The VEN starts when the workload is booted from system boot files:
Platform | Command | Notes |
|---|---|---|
Linux/AIX/Solaris | /etc/rc.d/init.d/illumio-ven Or /etc/init.d/illumio-ven | Installs firewall kernel modules if necessary, sets firewall to the desired state. |
CentOS/RHEL 7+, starting from 19.3.2 /usr/lib/systemd/system/illumioven.service | Initializes and starts the daemon processes needed for VEN operation. ImportantThis command is only supported in Illumio Core 19.3.2-VEN and later. | |
Windows | None needed. | The Service Control Manager (SCM) starts all VEN services at boot. |
Manual VEN Startup
The VEN can also be started manually with illumio-ven-ctl start.
Platform | Command |
|---|---|
Linux/AIX/Solaris/RHEL/CentOS | /opt/illumio_ven/illumio-ven-ctl start |
Windows |
|
Remote VEN Restart
Beginning with VEN release 25.2.10, you can restart a VEN directly from the PCE without physical access to the workload. Remote Restart is similar to other VEN operations that you can initiate from the PCE, such as unpairing and upgrading.
After you click Restart, the PCE waits for a heartbeat from the VEN before it sends a restart request to the VEN.
After receiving the restart request from the PCE, the VEN restarts and then sends the Last VEN Service Restart Performed time on the next heartbeat.
When the PCE receives the Last VEN Service Restart Performed time on the heartbeat, it marks the restart operation completed and displays Last VEN Service Restart Performed on the VEN details page. The reported time remains on the page for 1 hour.
If you click Restart again before the previous restart operation has concluded, a message displays letting you know.
The restart operation is typically unnoticeable from the PCE UI. The VEN sends a "goodbye" message while stopping and resumes heartbeating after it has restarted. Depending on how long the restart operation takes, the PCE may or may not report the VEN as "inactive."
The restart operation will not trigger the VEN's offline timer.
An audit event is logged when the VEN is restarted (see VEN Restart Audit Event).
As the VEN doesn't flush its policy during this restart operation, policy remains in the kernel.
VEN Restart Audit Event

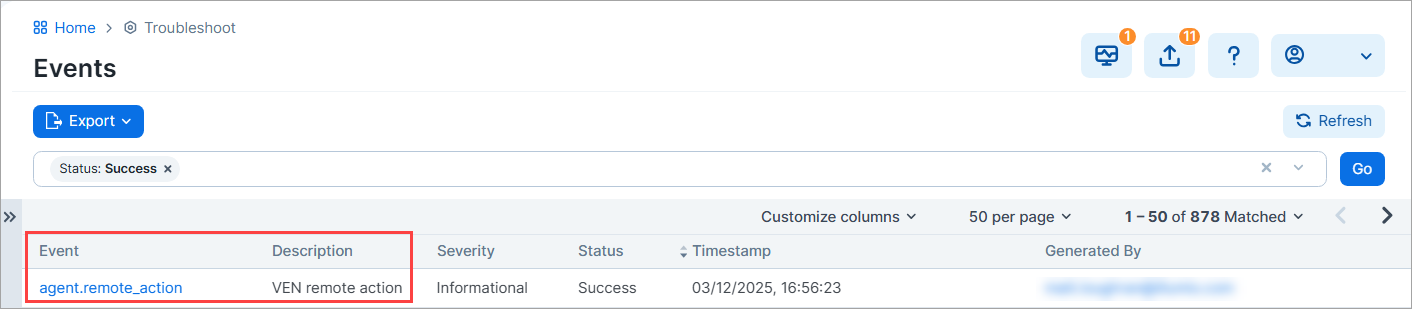

VEN Remote Restart logs an audit event that captures event details.
Go to Troubleshoot > Events.
To restart a VEN from the PCE
Note
The Restart button is grayed out if the VEN is Suspended or Offline.
Go to Servers & Endpoints > Workoads.
Click the VEN tab.
In the VEN list page, click the VEN you want to restart.
On the VEN's detail page, click Restart.
Shut down VENs
At shutdown, the VEN sends a “goodbye” message to the PCE. The PCE marks the workload as offline and initiates a policy recomputation. After the new policy is distributed throughout the network, the workload without the VEN is effectively isolated from the network.
Linux/AIX/Solaris Workload Shutdown
Platform | Command | Notes |
|---|---|---|
Linux/AIX/Solaris/RHEL/CentOS | illumio-ven-ctl stop |
|
Windows | None needed. |
|
