Troubleshooting
Troubleshoot common issues when installing Illumio on Kubernetes or OpenShift deployments.
Kubelink Support Bundle
To assist the Illumio Support team with more details for troubleshooting, Kubelink now provides a support bundle that collects up to 2 GB of logs, metrics, and other data inside its pod. Future versions will add the option to upload these support bundles to the PCE. Currently, you must copy this support bundle by running the script /support_bundle.sh inside the Kubelink pod. The script generates debug data, creates a gzipped tar archive using stdout as output, and encodes this data using Base64.
Use the following command to generate and transfer the Kubelink support bundle from its pod:
kubectl --namespace illumio-system exec deploy/illumio-kubelink -- /support_bundle.sh | base64 --decode > /tmp/kubelink_support.tgz
Send the resulting compressed archive file to Illumio Support when requested.
Helm deployment (and uninstall) fails with C-VEN stuck in ContainerCreating state
During a deployment with Helm, if C-VEN pods do not start, and instead continually show a status of ContainerCreating, check that you have the correct runtime set in your illumio-values.yaml file. If, for example, the containerRuntime value is set to containerd but you are now using a Docker runtime (parameter value of docker), then the C-VEN will become stuck in a ContainerCreating state. If you later attempt to uninstall, the unpair action for the C-VEN will also become stuck in a ContainerCreating state.
Confirm that a C-VEN exhibiting these persistent ContainerCreating symptoms is set to the proper containerRuntime value in its illumio-values.yaml. Another clue when troubleshooting is to check output of the describe command for the affected pod:
kubectl -n illumio-system describe pod/<your_pod_name>Check the output under the Containers section, and, within that section, under the Mounts section, to confirm the pod is attempting to mount to a location appropriate for your container runtime.
# kubectl -n illumio-system describe pod/illumio-ven-unpair-cwj2f Name: illumio-ven-unpair-cwj2f Namespace: illumio-system [. . .] Mounts: /var/run/containerd/containerd.sock from unixsocks (rw)
This problem is also shown under the Events section of this output, with a Warning event for that mount location due to the mismatched container runtime values.
Events: Type Reason Age From Message ---- ------ ---- ---- ------- [. . .] Warning FailedMount 96s (x11 over 7m48s) kubelet MountVolume.SetUp failed for volume “unixsocks” : hostPath type check failed: /var/run/containerd/containerd.sock is not a socket file
Also check for any other mistakes in the illumio_values file. For example, use the following kubectl get nodes -o wide commands to verify the proper OS node versions, Kubernetes/Openshift version, and the like:
root@Master:~# kubectl get nodes -o wide NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME master Ready control-plane 100d v1.29.9 10.2.85.63 <none> CentOS Linux 8 4.18.0-348.7.1.el8_5.x86_64 containerd://1.6.32 node0 Ready <none> 100d v1.29.9 10.2.85.65 <none> CentOS Linux 8 4.18.0-348.7.1.el8_5.x86_64 containerd://1.6.32 node1 Ready <none> 100d v1.29.9 10.2.85.66 <none> CentOS Linux 8 4.18.0-348.7.1.el8_5.x86_64 containerd://1.6.32 root@Master:~# ssh root@ubuntu-1 kubectl get nodes -o wide NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME ubuntu-1 Ready control-plane,master 94d v1.30.5+k3s1 10.2.144.1 <none> Ubuntu 20.04.6 LTS 5.4.0-196-generic containerd://1.7.21-k3s2 ubuntu-2 Ready <none> 94d v1.30.5+k3s1 10.2.197.128 <none> Ubuntu 20.04.6 LTS 5.4.0-196-generic containerd://1.7.21-k3s2 ubuntu-3 Ready <none> 93d v1.30.5+k3s1 10.2.197.129 <none> Ubuntu 20.04.6 LTS 5.4.0-196-generic containerd://1.7.21-k3s2
Failed Authentication with the Container Registry
In some cases, your Pods are in ImagePullBackOff state after the deployment:
$ kubectl -n kube-system get Pods NAME READY STATUS RESTARTS AGE coredns-58687784f9-h4pp2 1/1 Running 8 175d coredns-58687784f9-znn9j 1/1 Running 9 175d dns-autoscaler-79599df498-m55mg 1/1 Running 9 175d illumio-kubelink-87fd8d9f6-nmh25 0/1 ImagePullBackOff 0 28s
In this case, check the description of your Pods using the following command:
$ kubectl -n kube-system describe Pods illumio-kubelink-87fd8d9f6-nmh25
Name: illumio-kubelink-87fd8d9f6-nmh25
Namespace: kube-system
Priority: 0
Node: node2/10.0.0.12
Start Time: Fri, 03 Apr 2020 21:05:07 +0000
Labels: app=illumio-kubelink
Pod-template-hash=87fd8d9f6
Annotations: com.illumio.role: Kubelink
Status: Pending
IP: 10.10.65.55
IPs:
IP: 10.10.65.55
Controlled By: ReplicaSet/illumio-kubelink-87fd8d9f6
Containers:
illumio-kubelink:
Container ID:
Image: registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx
Image ID:
Port: <none>
Host Port: <none>
State: Waiting
Reason: ImagePullBackOff
Ready: False
Restart Count: 0
Environment:
ILO_SERVER: <set to the key 'ilo_server' in secret 'illumio-kubelink-config'> Optional: false
ILO_CLUSTER_UUID: <set to the key 'ilo_cluster_uuid' in secret 'illumio-kubelink-config'> Optional: false
ILO_CLUSTER_TOKEN: <set to the key 'ilo_cluster_token' in secret 'illumio-kubelink-config'> Optional: false
CLUSTER_TYPE: Kubernetes
IGNORE_CERT: <set to the key 'ignore_cert' in secret 'illumio-kubelink-config'> Optional: true
DEBUG_LEVEL: <set to the key 'log_level' in secret 'illumio-kubelink-config'> Optional: true
Mounts:
/etc/pki/tls/ilo_certs/ from root-ca (rw)
/var/run/secrets/kubernetes.io/serviceaccount from illumio-kubelink-token-7mvgk (ro)
Conditions:
Type Status
Initialized True
Ready False
ContainersReady False
PodScheduled True
Volumes:
root-ca:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: root-ca-config
Optional: false
illumio-kubelink-token-7mvgk:
Type: Secret (a volume populated by a Secret)
SecretName: illumio-kubelink-token-7mvgk
Optional: false
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node-role.kubernetes.io/master:NoSchedule
node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled <unknown> default-scheduler Successfully assigned kube-system/illumio-kubelink-87fd8d9f6-nmh25 to node2
Normal SandboxChanged 45s kubelet, node2 Pod sandbox changed, it will be killed and re-created.
Normal BackOff 14s (x4 over 45s) kubelet, node2 Back-off pulling image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx"
Warning Failed 14s (x4 over 45s) kubelet, node2 Error: ImagePullBackOff
Normal Pulling 1s (x3 over 46s) kubelet, node2 Pulling image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx"
Warning Failed 1s (x3 over 46s) kubelet, node2 Failed to pull image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx": rpc error: code = Unknown desc = Error response from daemon: unauthorized: authentication required
Warning Failed 1s (x3 over 46s) kubelet, node2 Error: ErrImagePullThe messages at the end of the output above are self-explanatory that there is a problem with the authentication against the container registry. Verify the credentials you entered in the secret for your private container registry and reapply it after fixing the issue.
Kubelink Pod in CrashLoopBackOff State
In some cases, your Kubelink Pod is in CrashLoobBackOff state after the deployment:
$ kubectl -n kube-system get Pods NAME READY STATUS RESTARTS AGE coredns-58687784f9-h4pp2 1/1 Running 8 174d coredns-58687784f9-znn9j 1/1 Running 9 174d dns-autoscaler-79599df498-m55mg 1/1 Running 9 174d illumio-kubelink-8648c6fb68-mdh8p 0/1 CrashLoopBackOff 1 16s
In this case, check the logs of your Pods using the following command:
$ kubectl -n kube-system logs illumio-kubelink-8648c6fb68-mdh8p
I, [2020-04-03T01:46:33.587761 #19] INFO -- : Starting Kubelink for PCE
https://mypce.example.com:8443
I, [2020-04-03T01:46:33.587915 #19] INFO -- : Found 1 custom certs
I, [2020-04-03T01:46:33.594212 #19] INFO -- : Installed custom certs to
/etc/pki/tls/certs/ca-bundle.crt
I, [2020-04-03T01:46:33.619976 #19] INFO -- : Connecting to PCE
https://mypce.example.com:8443
E, [2020-04-03T01:46:33.651410 #19] ERROR -- : Received a non retriable error
401
/illumio/kubelink.rb:163:in `update_pce_resource': HTTP status code 401 uri:
https://mypce.example.com:8443/api/v2/orgs/10/container_clusters/
42083a4d-dd92-49e6-b495-6f84a940073c/put_from_cluster, request_id:
21bdfc05-7b02-442d-a778-e6f2da2a462b response: request_body:
{"kubelink_version":"2.0.x.xxxxxx","errors":[],"manager_type":"Kubernetes v1.16.0"} (Illumio::PCEHttpException)
from /illumio/kubelink.rb:113:in `initialize'
from /illumio/main.rb:39:in `new'
from /illumio/main.rb:39:in `block in main'
from /external/lib/ruby/gems/2.4.0/gems/em-synchrony-1.0.6/
lib/em-synchrony.rb:39:in `block (2 levels) in synchrony'In the example above, the request is rejected by the PCE because of a wrong identifier. Open your secret file for Kubelink, verify your cluster UUID and token, and make sure you copy-pasted the same string provided by the PCE during cluster creation.
Container Cluster in Error

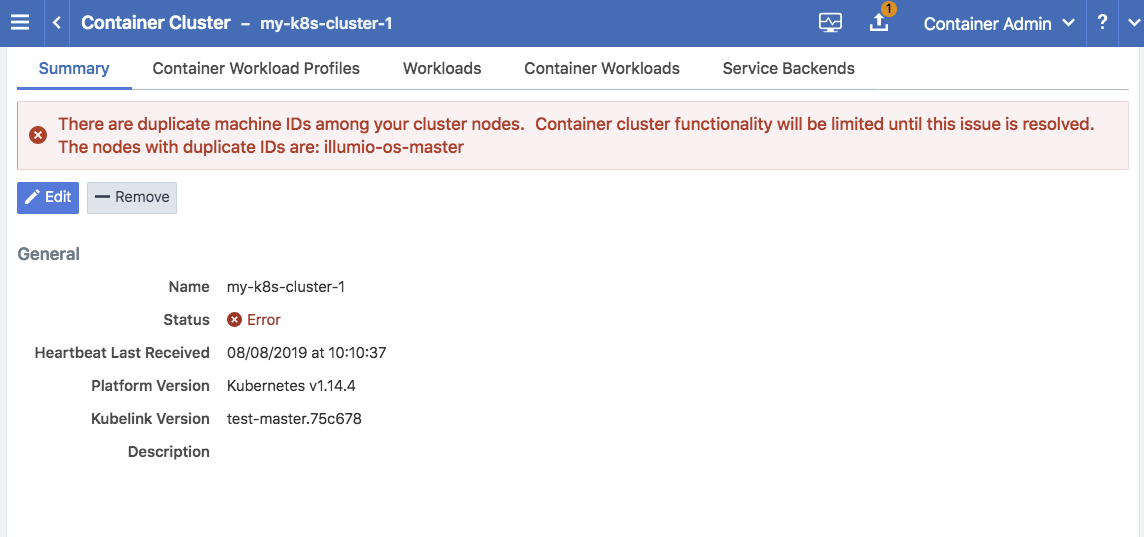

In some cases, the container cluster page displays an error indicating that duplicate machine IDs were detected and functionality will be limited. See the screenshot below.
To resolve this error, follow the steps in the section below. After following those steps, restart the C-VEN Pod on each of the affected Kubernetes cluster node.
Verify Machine IDs on All Nodes
To verify machine-ids and resolve any duplicate IDs across nodes:
Check the machineID of all your cluster nodes with the following command:
kubectl get node -o yaml | grep machineID
$ kubectl get node -o yaml | grep machineID machineID: ec2eefcfc1bdfa9d38218812405a27d9 machineID: ec2bcf3d167630bc587132ee83c9a7ad machineID: ec2bf11109b243671147b53abe1fcfc0As an alternative, you can also to check content of the
/etc/machine-idfile on all cluster nodes. The output should be a single newline-terminated, hexadecimal, 32-character, and lowercase ID.If the machine-id string is unique for each node, then the environment is OK. If the machine-id is duplicated across any of the nodes, then you must generate a machine-id for each node which has the same machine-id.
Running the following command displays the output of the machine-id:
cat /etc/machine-id
root@k8s-c2-node1:~# cat /etc/machine-id 2581d13362cd4220b20020ff728efff8
Generate a New Machine ID
If the machineID is duplicated on some or all of the Kubernetes nodes, use the following steps to generate a new machine-id.
For CentOS or Red Hat:
rm -rf /etc/machine-id; systemd-machine-id-setup; systemctl restart kubelet
For Ubuntu:
rm -rf /etc/machine-id; rm /var/lib/dbus/machine-id; systemd-machine-id-setup; systemctl restart kubelet
Note
Check the machine-id again after doing the above steps to verify that each Kubernetes cluster node has a unique machine-id.
Pods and Services Not Detected
In some cases, the Container Workloads page under Infrastructure > Container Clusters > MyClusterName is empty although the Workloads page has all the cluster nodes in it. This issue typically occurs when the wrong container runtime is monitored by Illumio. To resolve this issue:
Validate which container runtime is used in your Kubernetes or OpenShift cluster.
Open your configuration file for the C-VEN DaemonSet.
Modify the
unixsocksmount configuration to point to the right socket path on your hosts.
Note
This issue typically occurs when containerd or cri-o is the primary container runtime on Kubernetes or OpenShift nodes and there is an existing docker container runtime on the nodes that is not "active" (the socket still present on the nodes and process still running, mostly some leftover from the staging phase of the servers).
Pods Stuck in Terminating State
In a Kubernetes cluster running containerd 1.2.6-10 as the container runtime, on deleting a Pod while the C-VEN is deployed may result in the Pod being stuck in a terminating state. If you see this error, redeploy the C-VEN and modify the socket path as follows:
Change the volumeMount and hostPath from /var/run to /var/run/containerd in the illumio-ven.yaml file
