Getting Started with Illumio Core

Visibility into your application environment is an important step toward implementing micro-segmentation. It's important to understand what it is that you want a segment. Understanding the applications inside your environment—not just the applications but also the workloads that comprise them—is critical.

The Illumio web console includes a visualization tool—the Illumination map—that you can use to reveal the granular details of application traffic flows between specific workloads. This allows you to discover interactions across applications and between the tiers within your applications.

After you pair workloads, they appear in the Illumination map. It displays the inbound and outbound network traffic for your workloads. When you have less than 50 workloads paired with the PCE, you see them all in the Illumination map.

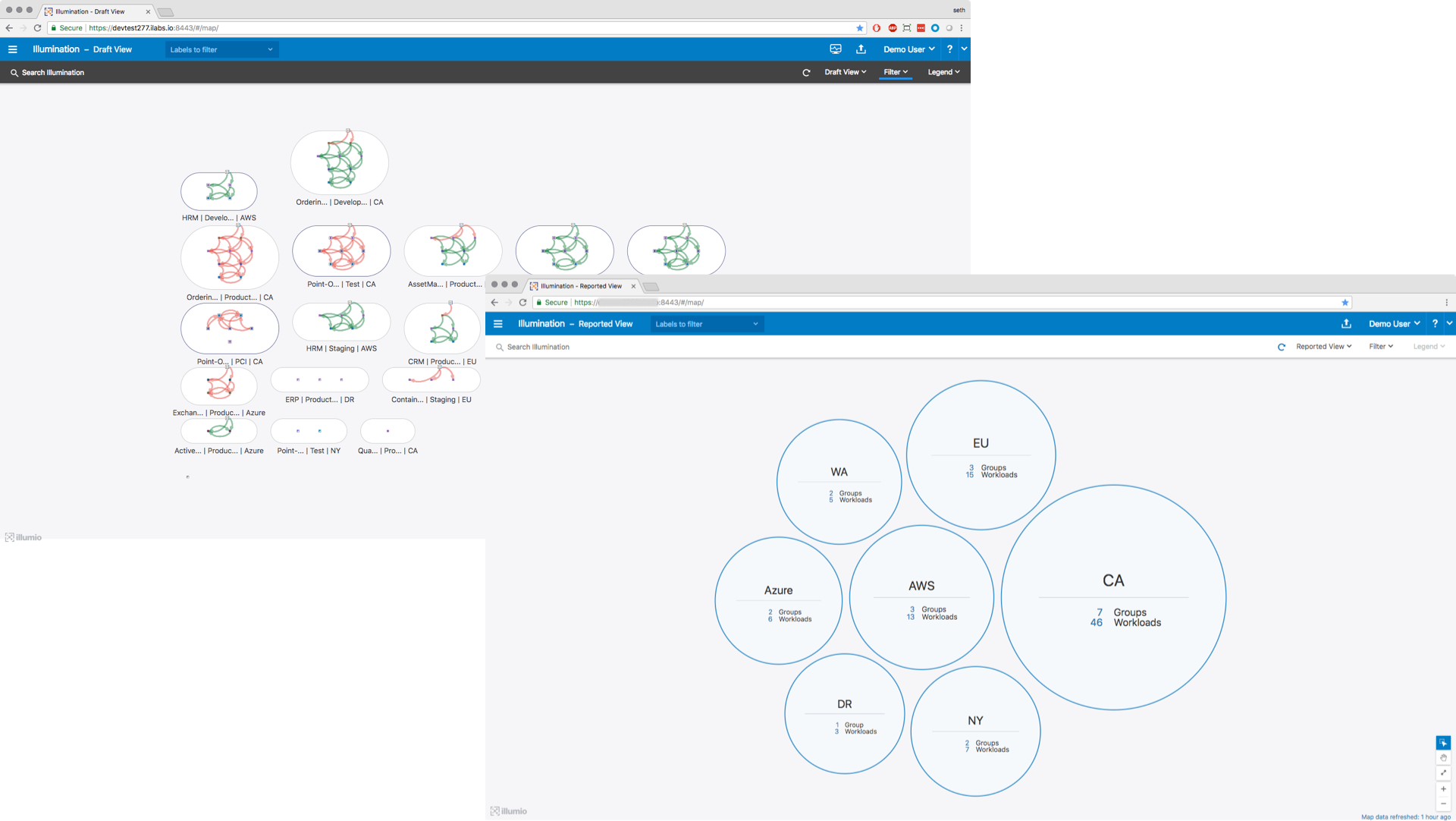

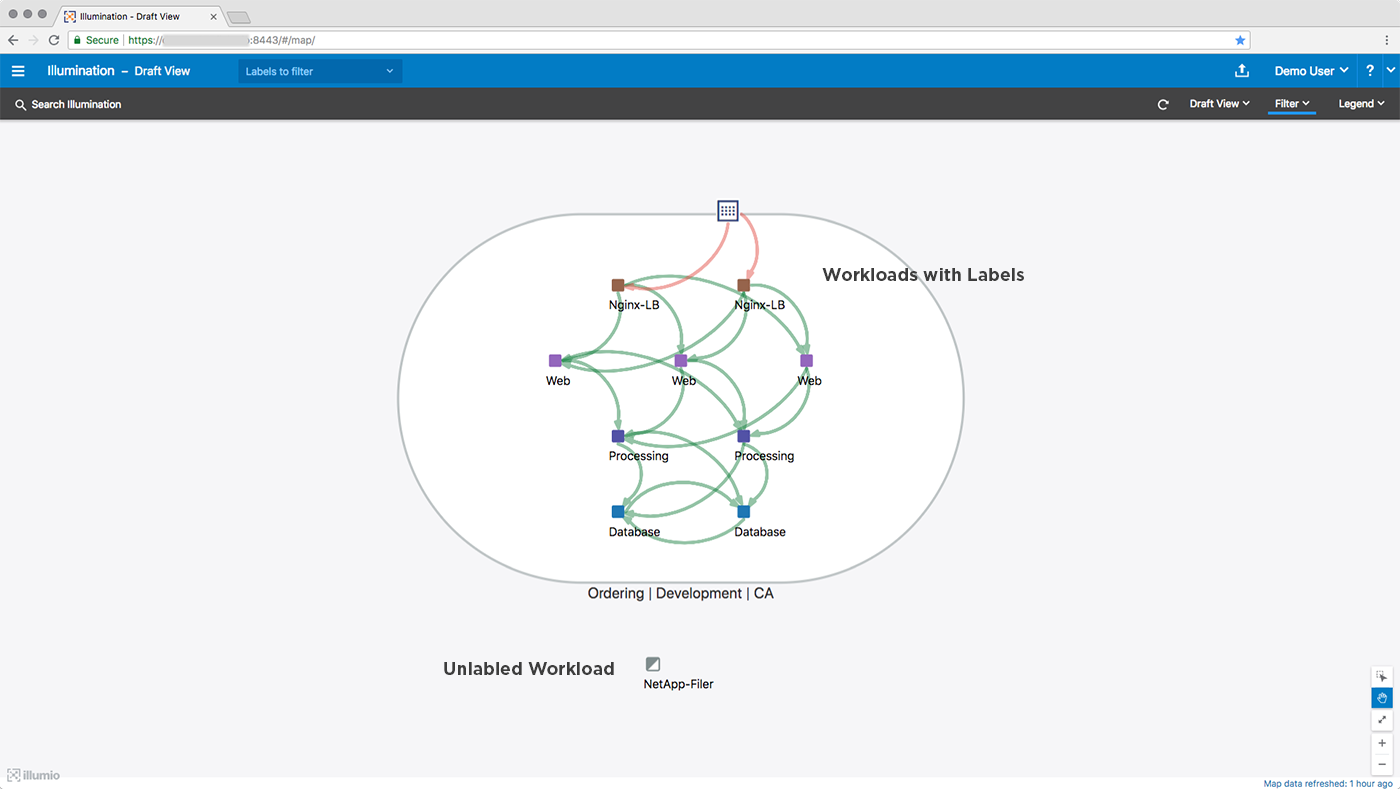

Based on how you label your workloads, the Illumination map forms logical groups.

Workloads with the same Application, Environment, and Location labels appear in the same group. Illumination organizes your groups by their Application label. Changing any of a workload’s labels moves the workload in the Illumination map and displays inter-group traffic flows.

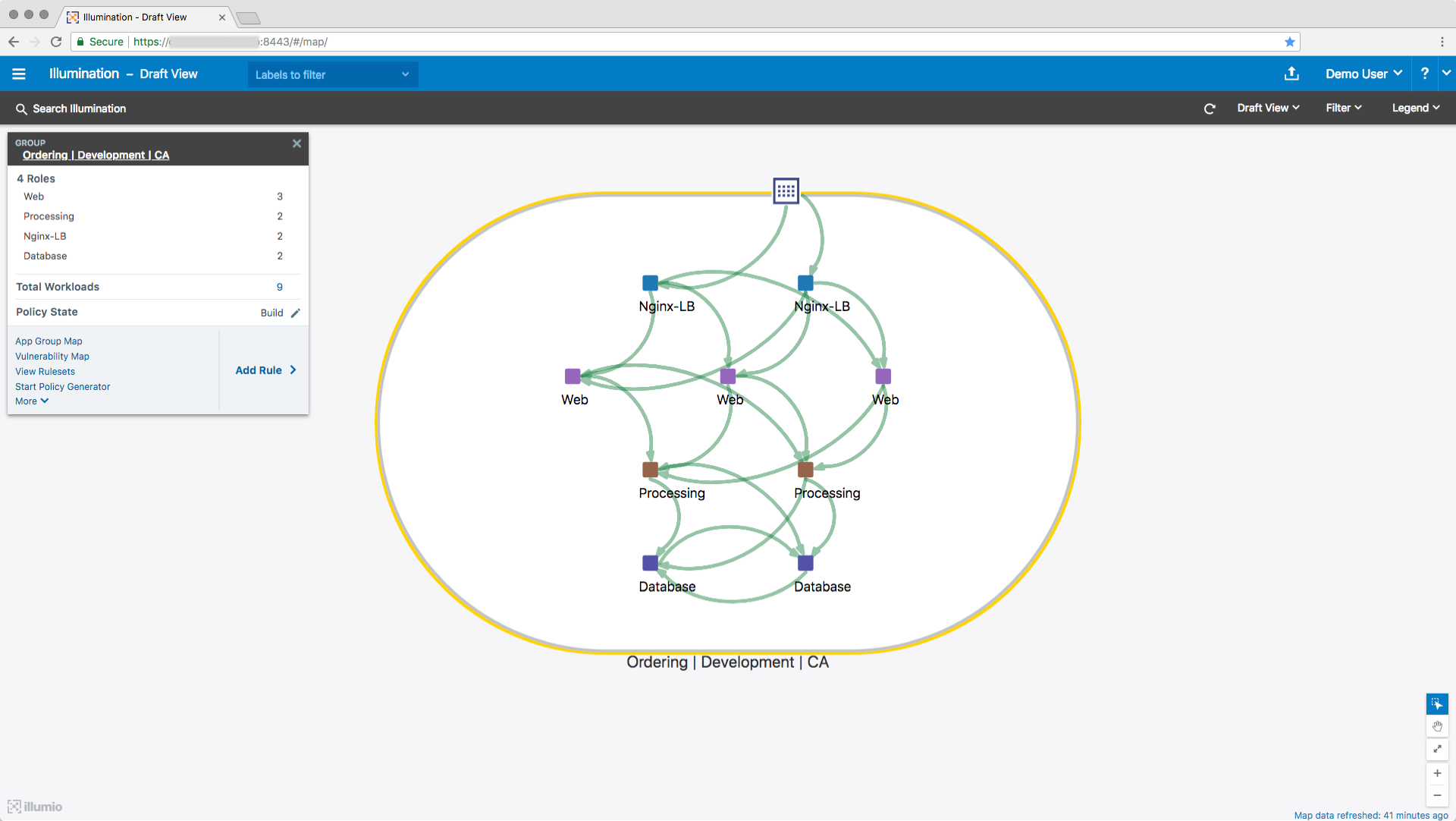

To see details about a group, click the group to zoom in. A command panel appears that displays valuable information about the group.

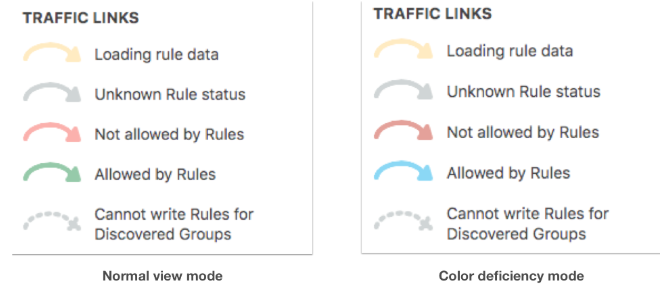

The Illumination map uses a color-coded system to display whether traffic will be allowed or blocked between your workloads.

Two key features in  Variables impact the traffic link colors policy states and the Draft and Reported views of the Illumination map.

When you pair a workload with the PCE, you assign it a policy state. The policy state determines how Illumio rules affect a workload's network communication.

Icon	Name	Description
	Idle	The VEN does not control the workload’s native OS firewall, and no traffic is blocked in this state. When a workload is in the Idle policy state, it reports its traffic flows with green lines (allowed).
	Build	The VEN does not control the workload’s native OS firewall, and no traffic is blocked in this state. When a workload is in the Build policy state, it reports its traffic flows with green lines (allowed). The Idle and Build policy states are similar in how they display traffic in the Illumination map. They differ in how they collect traffic data from the VENs.
	Test	The VEN does not take control of the workload’s native OS firewall, and no traffic is blocked in this state. However, when you view your Illumination map using the Draft view, workloads in the Test policy state display red traffic lines that would be blocked if the workload was in the Enforced policy state. Important Traffic is reported as blocked unless you’ve written an Illumio rule allowing the connection.
	Enforced	The VEN controls the workload’s native OS firewall and blocks traffic unless you’ve written an Illumio rule allowing the connection.
	Unmanaged	You have created the workload in the PCE by specifying its attributes, such as IP address, hostname, and OS. Unmanaged workloads aren’t paired with the PCE and don’t have the VEN installed. You can apply labels to unmanaged workloads so that managed workloads (with VENs installed) can communicate with unmanaged workloads.

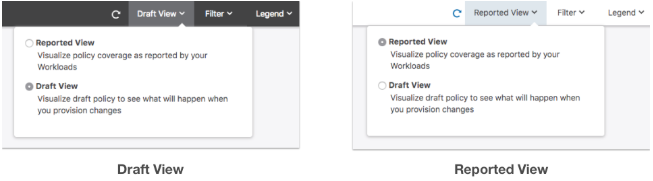

The Illumination map provides two views of the policy data. These views show you what is happening and what will happen after provisioning pending changes from the PCE to the VENs.
