Troubleshooting

Troubleshoot common issues when installing Illumio on Kubernetes or OpenShift deployments.

Kubelink Support Bundle

To assist the Illumio Support team with more details for troubleshooting, Kubelink now provides a support bundle that collects up to 2 GB of logs, metrics, and other data inside its pod. Future versions will add the option to upload these support bundles to the PCE. Currently, you must copy this support bundle by running the script /support_bundle.sh inside the Kubelink pod. The script generates debug data, creates a gzipped tar archive using stdout as output, and encodes this data using Base64.

Use the following command to generate and transfer the Kubelink support bundle from its pod:

kubectl --namespace illumio-system exec deploy/illumio-kubelink -- /support_bundle.sh | base64 --decode > /tmp/kubelink_support.tgz

Send the resulting compressed archive file to Illumio Support when requested.

Helm deployment (and uninstall) fails with C-VEN stuck in ContainerCreating state

During a deployment with Helm, if C-VEN pods do not start, and instead continually show a status of ContainerCreating, check that you have the correct runtime set in your illumio-values.yaml file. If, for example, the containerRuntime value is set to containerd but you are now using a Docker runtime (parameter value of docker), then the C-VEN will become stuck in a ContainerCreating state. If you later attempt to uninstall, the unpair action for the C-VEN will also become stuck in a ContainerCreating state.

Confirm that a C-VEN exhibiting these persistent ContainerCreating symptoms is set to the proper containerRuntime value in its illumio-values.yaml. Another clue when troubleshooting is to check output of the describe command for the affected pod:

kubectl -n illumio-system describe pod/<your_pod_name>

Check the output under the Containers section, and, within that section, under the Mounts section, to confirm the pod is attempting to mount to a location appropriate for your container runtime.

# kubectl -n illumio-system describe pod/illumio-ven-unpair-cwj2f
Name:         illumio-ven-unpair-cwj2f
Namespace:    illumio-system

[. . .]

Mounts:
	/var/run/containerd/containerd.sock from unixsocks (rw)

This problem is also shown under the Events section of this output, with a Warning event for that mount location due to the mismatched container runtime values.

Events:
  Type     Reason       Age                   From        Message
  ----     ------       ----                  ----        -------
[. . .]
  Warning  FailedMount  96s (x11 over 7m48s)  kubelet     MountVolume.SetUp failed for volume “unixsocks” : hostPath type check failed: /var/run/containerd/containerd.sock is not a socket file

Also check for any other mistakes in the illumio_values file. For example, use the following kubectl get nodes -o wide commands to verify the proper OS node versions, Kubernetes/Openshift version, and the like:

root@Master:~# kubectl get nodes -o wide
NAME     STATUS  ROLES           AGE    VERSION   INTERNAL-IP   EXTERNAL-IP  OS-IMAGE   KERNEL-VERSION                         CONTAINER-RUNTIME
master   Ready   control-plane   100d   v1.29.9   10.2.85.63    <none>       CentOS     Linux 8 4.18.0-348.7.1.el8_5.x86_64    containerd://1.6.32
node0    Ready   <none>          100d   v1.29.9   10.2.85.65    <none>       CentOS     Linux 8 4.18.0-348.7.1.el8_5.x86_64    containerd://1.6.32
node1    Ready   <none>          100d   v1.29.9   10.2.85.66    <none>       CentOS     Linux 8 4.18.0-348.7.1.el8_5.x86_64    containerd://1.6.32

root@Master:~# ssh root@ubuntu-1 kubectl get nodes -o wide
NAME     STATUS  ROLES                 AGE    VERSION       INTERNAL-IP    EXTERNAL-IP   OS-IMAGE    KERNEL-VERSION                   CONTAINER-RUNTIME
ubuntu-1 Ready   control-plane,master  94d    v1.30.5+k3s1  10.2.144.1     <none>        Ubuntu      20.04.6 LTS 5.4.0-196-generic    containerd://1.7.21-k3s2
ubuntu-2 Ready   <none>                94d    v1.30.5+k3s1  10.2.197.128   <none>        Ubuntu      20.04.6 LTS 5.4.0-196-generic    containerd://1.7.21-k3s2
ubuntu-3 Ready   <none>                93d    v1.30.5+k3s1  10.2.197.129   <none>        Ubuntu      20.04.6 LTS 5.4.0-196-generic    containerd://1.7.21-k3s2

Failed Authentication with the Container Registry

In some cases, your Pods are in ImagePullBackOff state after the deployment:

$ kubectl -n kube-system get Pods
NAME                               READY   STATUS             RESTARTS   AGE
coredns-58687784f9-h4pp2           1/1     Running            8          175d
coredns-58687784f9-znn9j           1/1     Running            9          175d
dns-autoscaler-79599df498-m55mg    1/1     Running            9          175d
illumio-kubelink-87fd8d9f6-nmh25   0/1     ImagePullBackOff   0          28s

In this case, check the description of your Pods using the following command:

$ kubectl -n kube-system describe Pods illumio-kubelink-87fd8d9f6-nmh25
Name:         illumio-kubelink-87fd8d9f6-nmh25
Namespace:    kube-system
Priority:     0
Node:         node2/10.0.0.12
Start Time:   Fri, 03 Apr 2020 21:05:07 +0000
Labels:       app=illumio-kubelink
              Pod-template-hash=87fd8d9f6
Annotations:  com.illumio.role: Kubelink
Status:       Pending
IP:           10.10.65.55
IPs:
  IP:           10.10.65.55
Controlled By:  ReplicaSet/illumio-kubelink-87fd8d9f6
Containers:
  illumio-kubelink:
    Container ID:
    Image:          registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx
    Image ID:
    Port:           <none>
    Host Port:      <none>
    State:          Waiting
      Reason:       ImagePullBackOff
    Ready:          False
    Restart Count:  0
    Environment:
      ILO_SERVER:         <set to the key 'ilo_server' in secret 'illumio-kubelink-config'>         Optional: false
      ILO_CLUSTER_UUID:   <set to the key 'ilo_cluster_uuid' in secret 'illumio-kubelink-config'>   Optional: false
      ILO_CLUSTER_TOKEN:  <set to the key 'ilo_cluster_token' in secret 'illumio-kubelink-config'>  Optional: false
      CLUSTER_TYPE:       Kubernetes
      IGNORE_CERT:        <set to the key 'ignore_cert' in secret 'illumio-kubelink-config'>  Optional: true
      DEBUG_LEVEL:        <set to the key 'log_level' in secret 'illumio-kubelink-config'>    Optional: true
    Mounts:
      /etc/pki/tls/ilo_certs/ from root-ca (rw)
      /var/run/secrets/kubernetes.io/serviceaccount from illumio-kubelink-token-7mvgk (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             False
  ContainersReady   False
  PodScheduled      True
Volumes:
  root-ca:
    Type:      ConfigMap (a volume populated by a ConfigMap)
    Name:      root-ca-config
    Optional:  false
  illumio-kubelink-token-7mvgk:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  illumio-kubelink-token-7mvgk
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node-role.kubernetes.io/master:NoSchedule
                 node.kubernetes.io/not-ready:NoExecute for 300s
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type     Reason          Age                From               Message
  ----     ------          ----               ----               -------
  Normal   Scheduled       <unknown>          default-scheduler  Successfully assigned kube-system/illumio-kubelink-87fd8d9f6-nmh25 to node2
  Normal   SandboxChanged  45s                kubelet, node2     Pod sandbox changed, it will be killed and re-created.
  Normal   BackOff         14s (x4 over 45s)  kubelet, node2     Back-off pulling image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx"
  Warning  Failed          14s (x4 over 45s)  kubelet, node2     Error: ImagePullBackOff
  Normal   Pulling         1s (x3 over 46s)   kubelet, node2     Pulling image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx"
  Warning  Failed          1s (x3 over 46s)   kubelet, node2     Failed to pull image "registry.poc.segmentationpov.com/illumio-kubelink:2.0.x.xxxxxx": rpc error: code = Unknown desc = Error response from daemon: unauthorized: authentication required
  Warning  Failed          1s (x3 over 46s)   kubelet, node2     Error: ErrImagePull

The messages at the end of the output above are self-explanatory that there is a problem with the authentication against the container registry. Verify the credentials you entered in the secret for your private container registry and reapply it after fixing the issue.

Kubelink Pod in CrashLoopBackOff State

In some cases, your Kubelink Pod is in CrashLoobBackOff state after the deployment:

$ kubectl -n kube-system get Pods
NAME                                READY   STATUS             RESTARTS   AGE
coredns-58687784f9-h4pp2            1/1     Running            8          174d
coredns-58687784f9-znn9j            1/1     Running            9          174d
dns-autoscaler-79599df498-m55mg     1/1     Running            9          174d
illumio-kubelink-8648c6fb68-mdh8p   0/1     CrashLoopBackOff   1          16s

In this case, check the logs of your Pods using the following command:

$ kubectl -n kube-system logs illumio-kubelink-8648c6fb68-mdh8p
I, [2020-04-03T01:46:33.587761 #19]  INFO -- : Starting Kubelink for PCE
https://mypce.example.com:8443
I, [2020-04-03T01:46:33.587915 #19]  INFO -- : Found 1 custom certs
I, [2020-04-03T01:46:33.594212 #19]  INFO -- : Installed custom certs to
/etc/pki/tls/certs/ca-bundle.crt
I, [2020-04-03T01:46:33.619976 #19]  INFO -- : Connecting to PCE
https://mypce.example.com:8443
E, [2020-04-03T01:46:33.651410 #19] ERROR -- : Received a non retriable error
401
/illumio/kubelink.rb:163:in `update_pce_resource': HTTP status code 401 uri:
https://mypce.example.com:8443/api/v2/orgs/10/container_clusters/
42083a4d-dd92-49e6-b495-6f84a940073c/put_from_cluster, request_id:
21bdfc05-7b02-442d-a778-e6f2da2a462b response:  request_body:
{"kubelink_version":"2.0.x.xxxxxx","errors":[],"manager_type":"Kubernetes v1.16.0"} (Illumio::PCEHttpException)
    from /illumio/kubelink.rb:113:in `initialize'
    from /illumio/main.rb:39:in `new'
    from /illumio/main.rb:39:in `block in main'
    from /external/lib/ruby/gems/2.4.0/gems/em-synchrony-1.0.6/
    lib/em-synchrony.rb:39:in `block (2 levels) in synchrony'

In the example above, the request is rejected by the PCE because of a wrong identifier. Open your secret file for Kubelink, verify your cluster UUID and token, and make sure you copy-pasted the same string provided by the PCE during cluster creation.

Container Cluster in Error

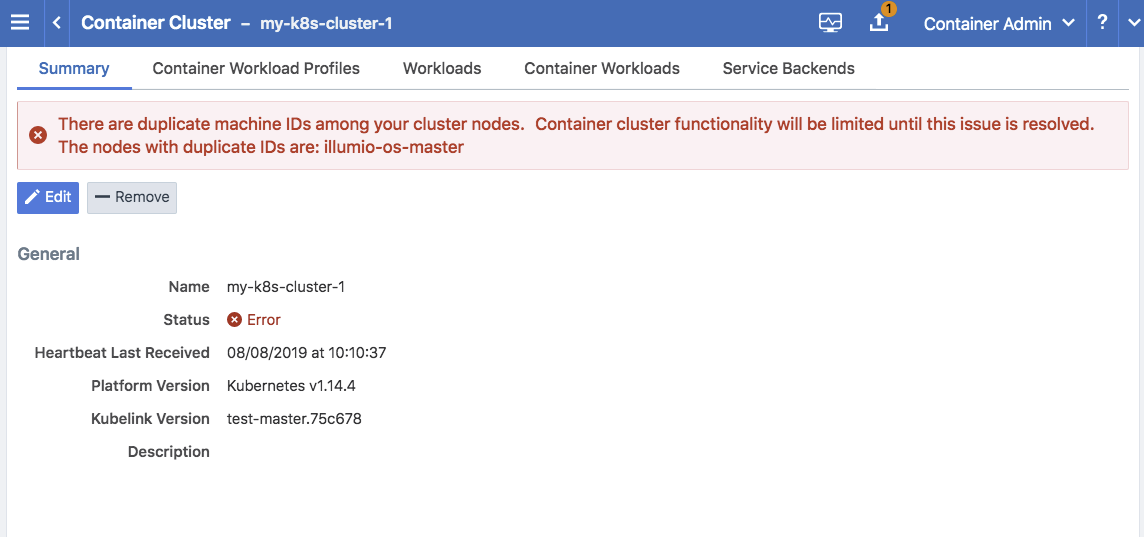

In some cases, the container cluster page displays an error indicating that duplicate machine IDs were detected and functionality will be limited. See the screenshot below.


To resolve this error, follow the steps in the section below. After following those steps, restart the C-VEN Pod on each of the affected Kubernetes cluster node.

Verify Machine IDs on All Nodes

To verify machine-ids and resolve any duplicate IDs across nodes:

  1. Check the machineID of all your cluster nodes with the following command:

    kubectl get node -o yaml | grep machineID
    $ kubectl get node -o yaml | grep machineID
      machineID: ec2eefcfc1bdfa9d38218812405a27d9
      machineID: ec2bcf3d167630bc587132ee83c9a7ad
      machineID: ec2bf11109b243671147b53abe1fcfc0

  2. As an alternative, you can also to check content of the /etc/machine-id file on all cluster nodes. The output should be a single newline-terminated, hexadecimal, 32-character, and lowercase ID.

  3. If the machine-id string is unique for each node, then the environment is OK. If the machine-id is duplicated across any of the nodes, then you must generate a machine-id for each node which has the same machine-id.

  4. Running the following command displays the output of the machine-id:

    cat /etc/machine-id
    root@k8s-c2-node1:~# cat /etc/machine-id
2581d13362cd4220b20020ff728efff8
Generate a New Machine ID

If the machineID is duplicated on some or all of the Kubernetes nodes, use the following steps to generate a new machine-id.

  • For CentOS or Red Hat:

rm -rf /etc/machine-id; systemd-machine-id-setup;
systemctl restart kubelet

  • For Ubuntu:

rm -rf /etc/machine-id; rm /var/lib/dbus/machine-id; systemd-machine-id-setup;
systemctl restart kubelet

Note

Check the machine-id again after doing the above steps to verify that each Kubernetes cluster node has a unique machine-id.

Pods and Services Not Detected

In some cases, the Container Workloads page under Infrastructure > Container Clusters > MyClusterName is empty although the Workloads page has all the cluster nodes in it. This issue typically occurs when the wrong container runtime is monitored by Illumio. To resolve this issue:

  1. Validate which container runtime is used in your Kubernetes or OpenShift cluster.

  2. Open your configuration file for the C-VEN DaemonSet.

  3. Modify the unixsocks mount configuration to point to the right socket path on your hosts.

Note

This issue typically occurs when containerd or cri-o is the primary container runtime on Kubernetes or OpenShift nodes and there is an existing docker container runtime on the nodes that is not "active" (the socket still present on the nodes and process still running, mostly some leftover from the staging phase of the servers).

Pods Stuck in Terminating State

In a Kubernetes cluster running containerd 1.2.6-10 as the container runtime, on deleting a Pod while the C-VEN is deployed may result in the Pod being stuck in a terminating state. If you see this error, redeploy the C-VEN and modify the socket path as follows:

Change the volumeMount and hostPath from /var/run to /var/run/containerd in the illumio-ven.yaml file
